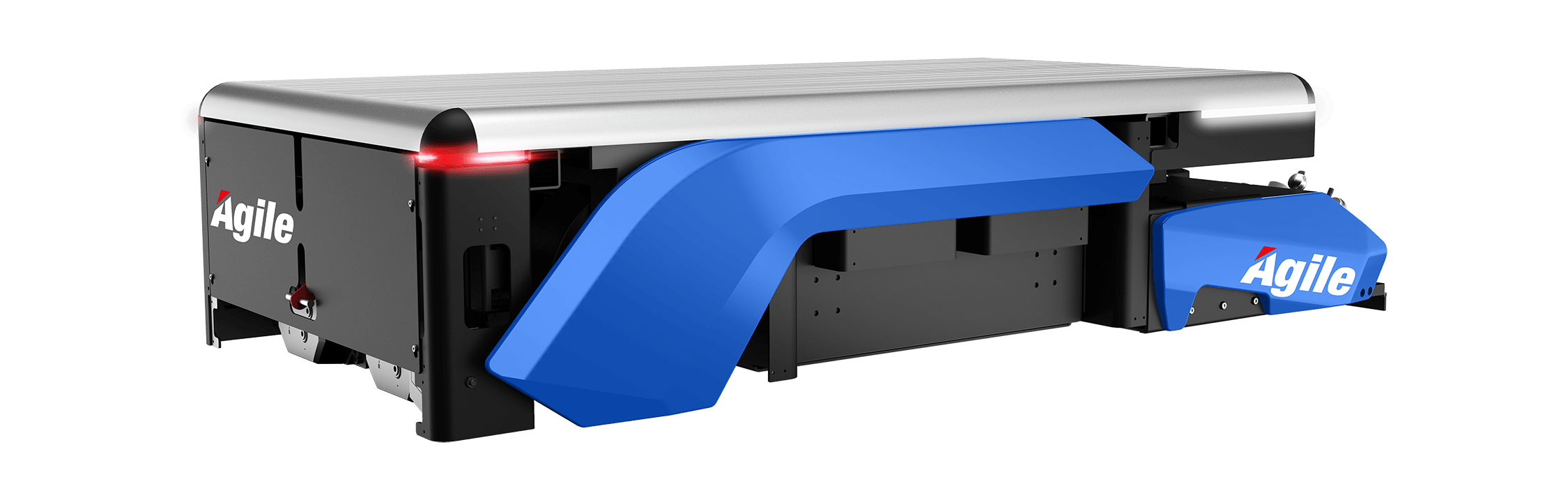

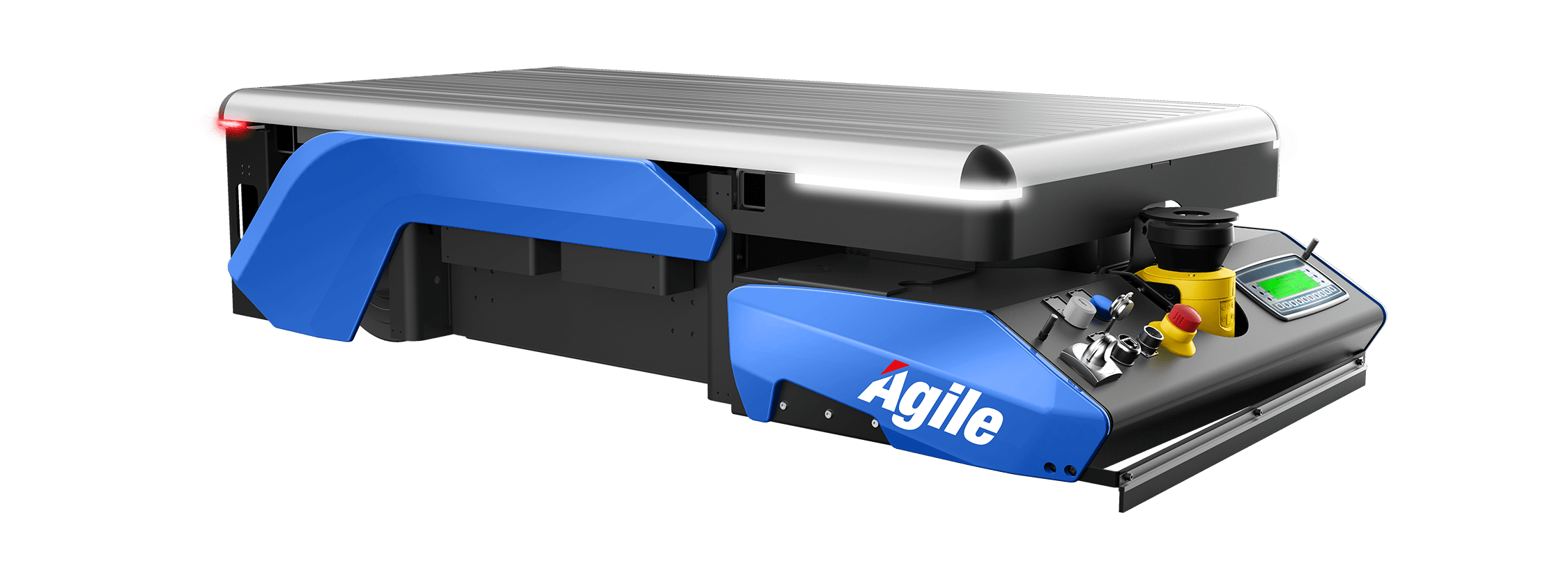

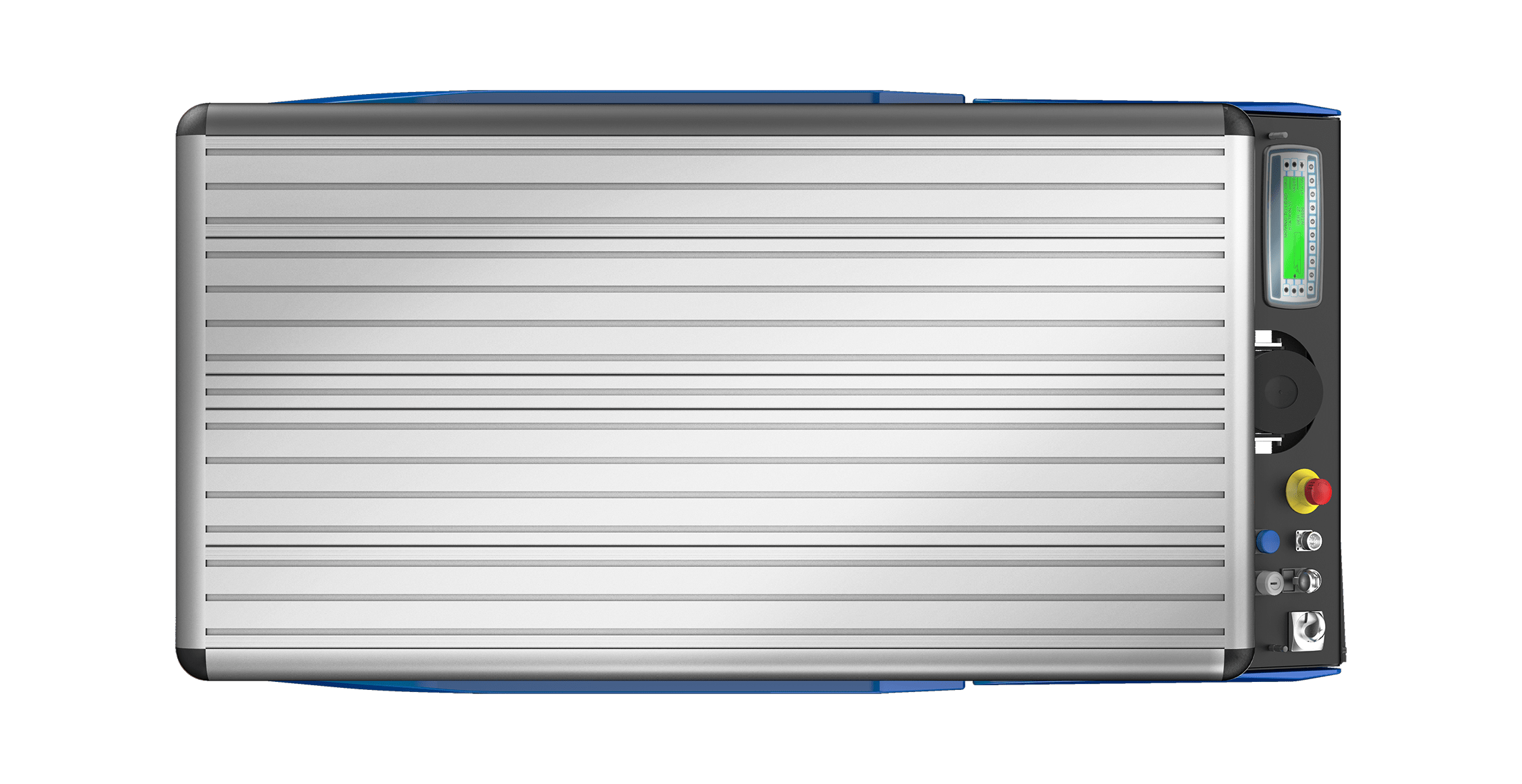

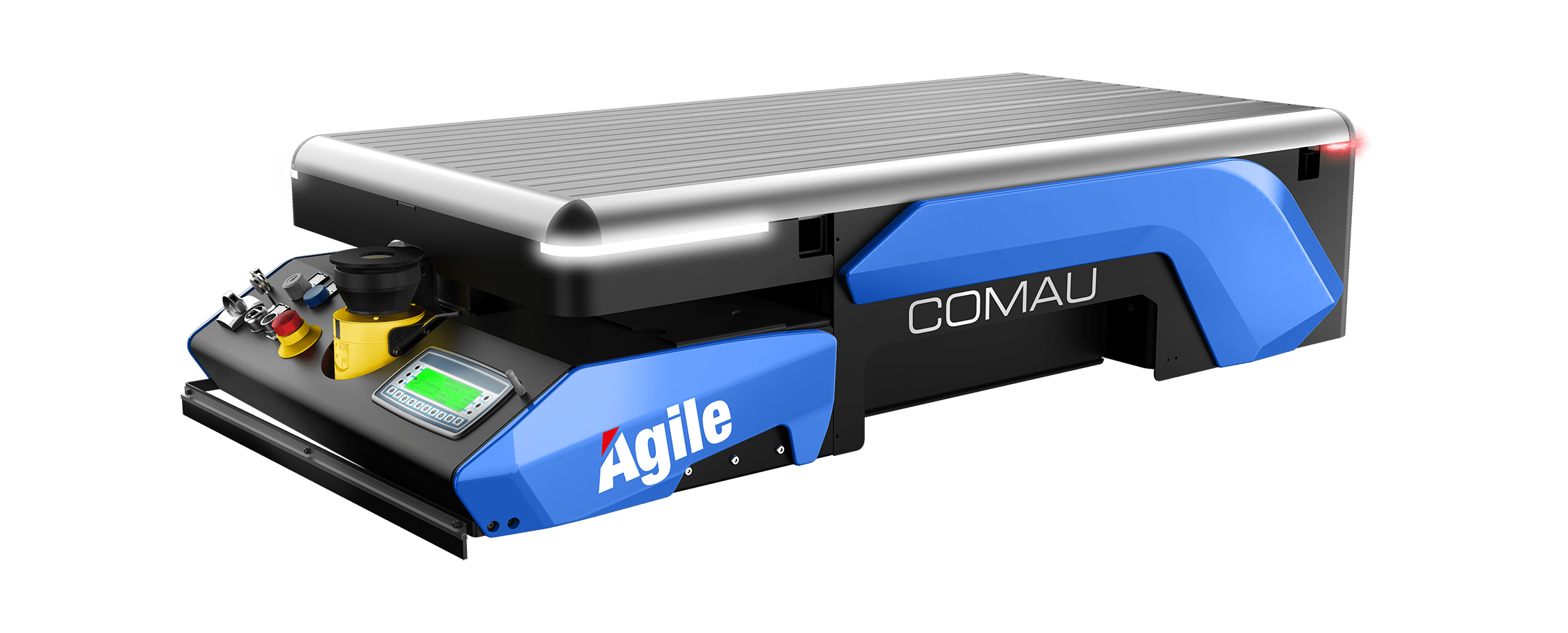

Agile 1500: Redefining Automated Guided Vehicles (AGVs)
Agile1500 is the first model within the Robotics Benelux automated guided vehicles platform and is based upon Comau’s open automation design approach: it is flexible enough to be deployed across a wide range of manufacturing and non manufacturing scenarios.
Products
Features: Enhancing Robotic Capabilities
- ​High performance vehicle
- Best in class payload to size ratio
- Modular design
- Multipurpose applications can be implemented
- Multiple navigation systems are possible
Benefits
- Complete reconfigurability protects ROI and reduces TCO
- Full compatibility with other Kollmorgen-based AGV systems
- Intuitive programming interface
- Full connectivity and diagnostic Factory 4.0 ready
- Human-robot collaborative (safe)
- Improved safety and ergonomics compared to traditional solutions
- Simplified maintenance
Technical specifications - AGV - Agile 1500
| External dimensions (LxWxH) [mm] | 1404 x 680 x 330 |
| Weight [Kg] | 350 |
| Maximum payload [Kg] | 1500 |
| Maximum speed [m/s] | 1.7 |
| Positioning repeatability [mm] | +/-10 |
| Maximun grade [%] | 1 |
| Motion | Forward at max. speed, Backward as an option at safe speed |
| Operating environment | Indoor |
| Battery type | Maintenance free Lead (or Litium as an option) |
| Battery characteristics [V] - [Ah] | 24 - 205 |
| Battery autonomy | 1 shift for average applications, charging time depends on battery type |
| Power supply | 24 Vdc Power, 24 Vdc Auxiliary |
| Communication | CANopen |
