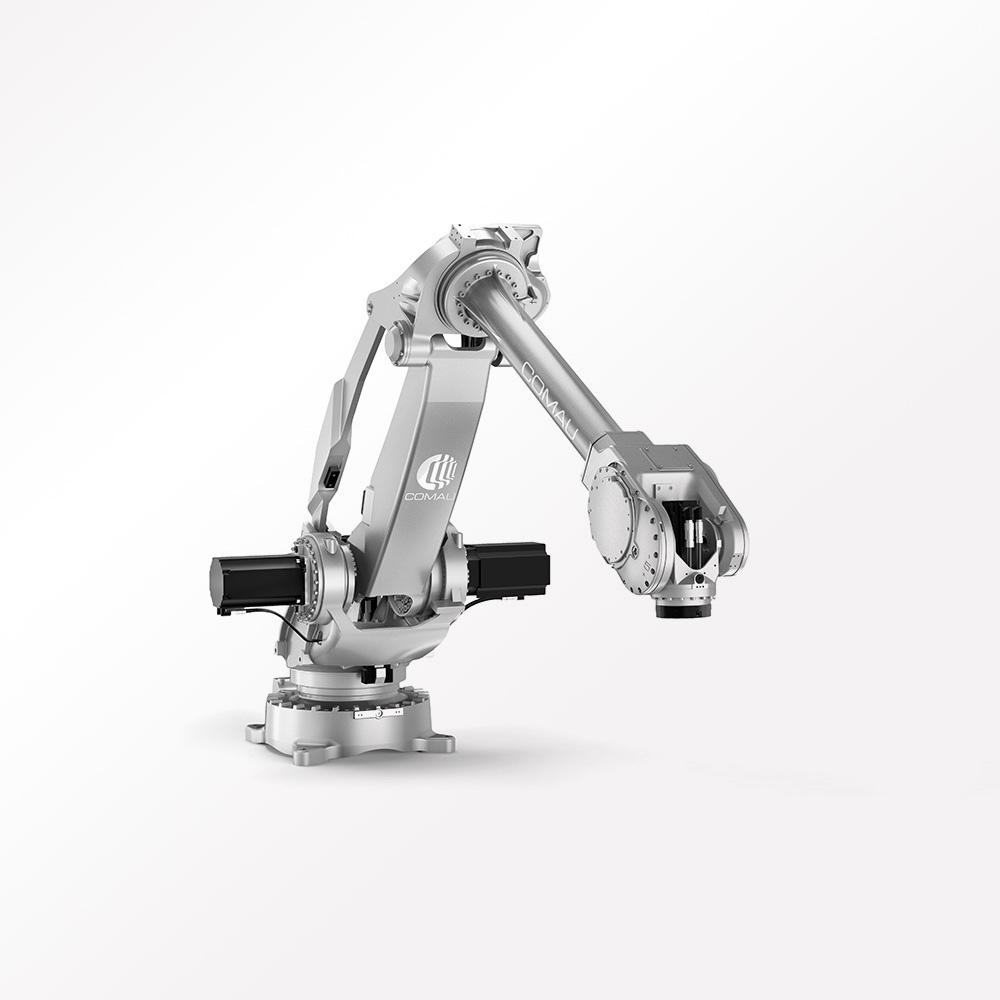

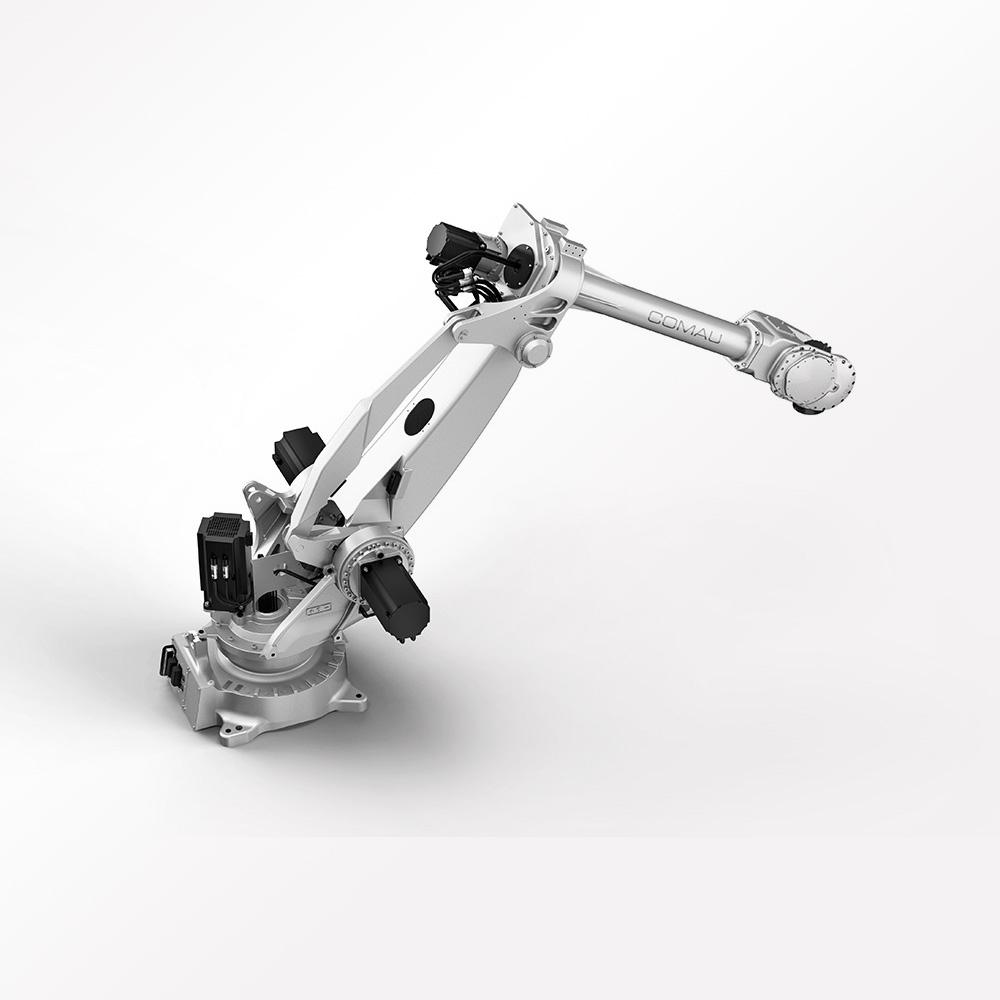

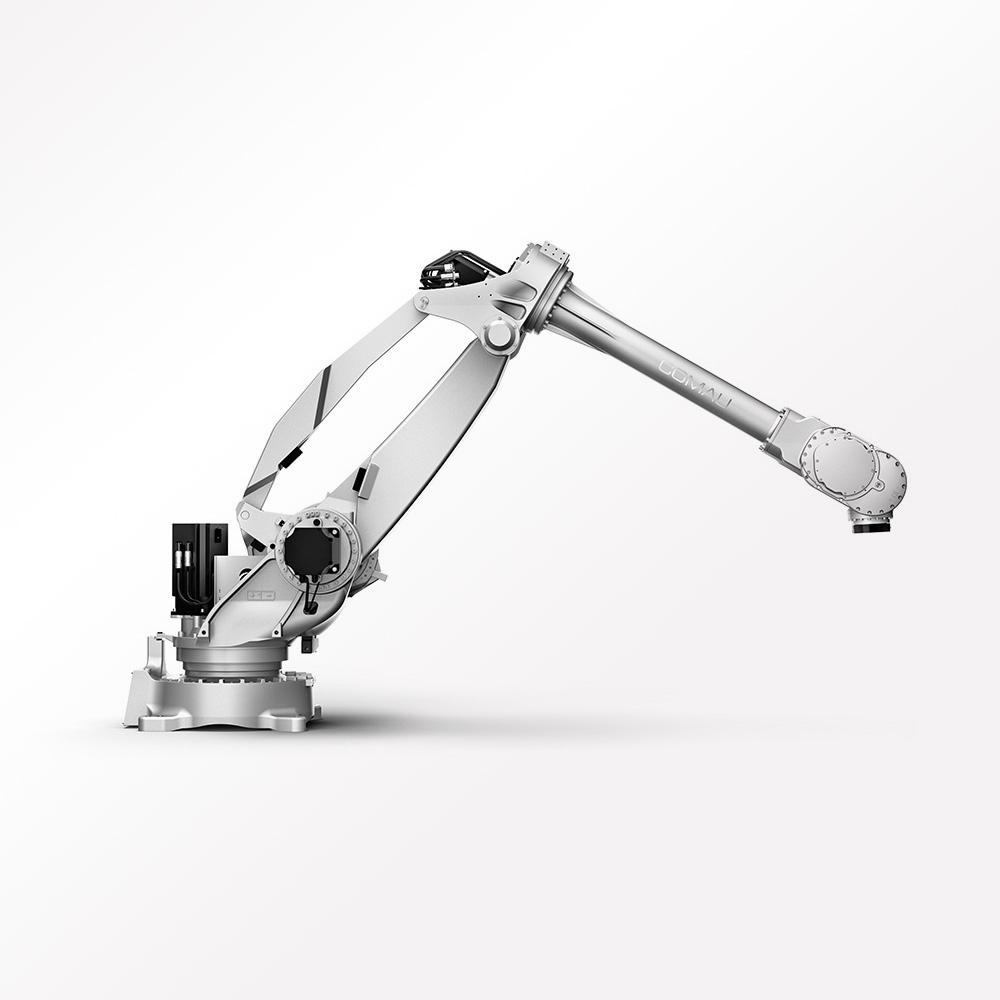

Robot Famliy - NJ 100-3.2 PRESS

Press-to-Press Automation

Industry-leading technology and factoryproven experience combine to ensure coordinated action, synchrony and pressto-press cycle perfection.

Technical specifications NJ 100-3.2 PRESS

Number of axes 6
Maximum Wrist Payload 100 kg
Additional load on forearm 50 kg
Maximum horizontal reach 3209 mm
Torque on axis 4 (Nm) 638 Nm
Torque on axis 5 (Nm) 638 Nm
Torque on axis 6 (Nm) 280 Nm
Stroke (Speed) on Axis 1 +/- 180° (120°/s)
Stroke (Speed) on Axis 2 -49°/ +95° (108°/s)
Stroke (Speed) on Axis 3 -222°/- 68° (120°/s)
Stroke (Speed) on Axis 4 +/- 200° (190°/s)
Stroke (Speed) on Axis 5 +/- 120° (190°/s)
Stroke (Speed) on Axis 6 +/- 200° (250°/275°/s)
Repeatability (mm) 0.17 mm
Tool coupling flange ISO 9409-1-A125
Robot weight (Kg) 1250 kg
Protection class IP44 / IP65 Wrist
Mounting position Floor
Operating Areas A (mm) 2780 mm
Operating Areas B (mm) 3209 mm
Operating Areas C (mm) 2376 mm
Operating Areas D (mm) 962 mm
Operating Areas E (mm) 1035 mm

Suitable for

Handling / Packaging, Vision System, Press to press

NJ 100-3.2 PRESS auxiliary systems

Positioners: MP | TR | PDTV | PTDO
External Axes: External Axes
Slides: TMF
