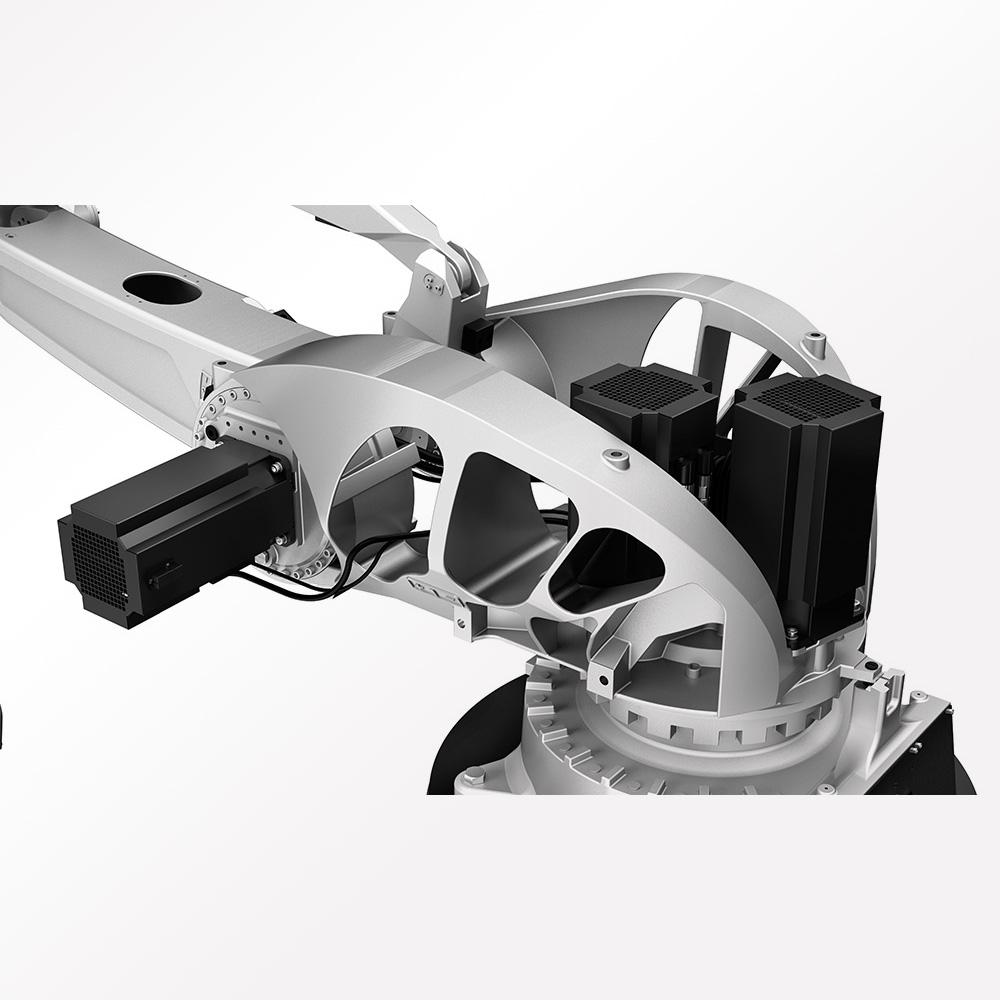

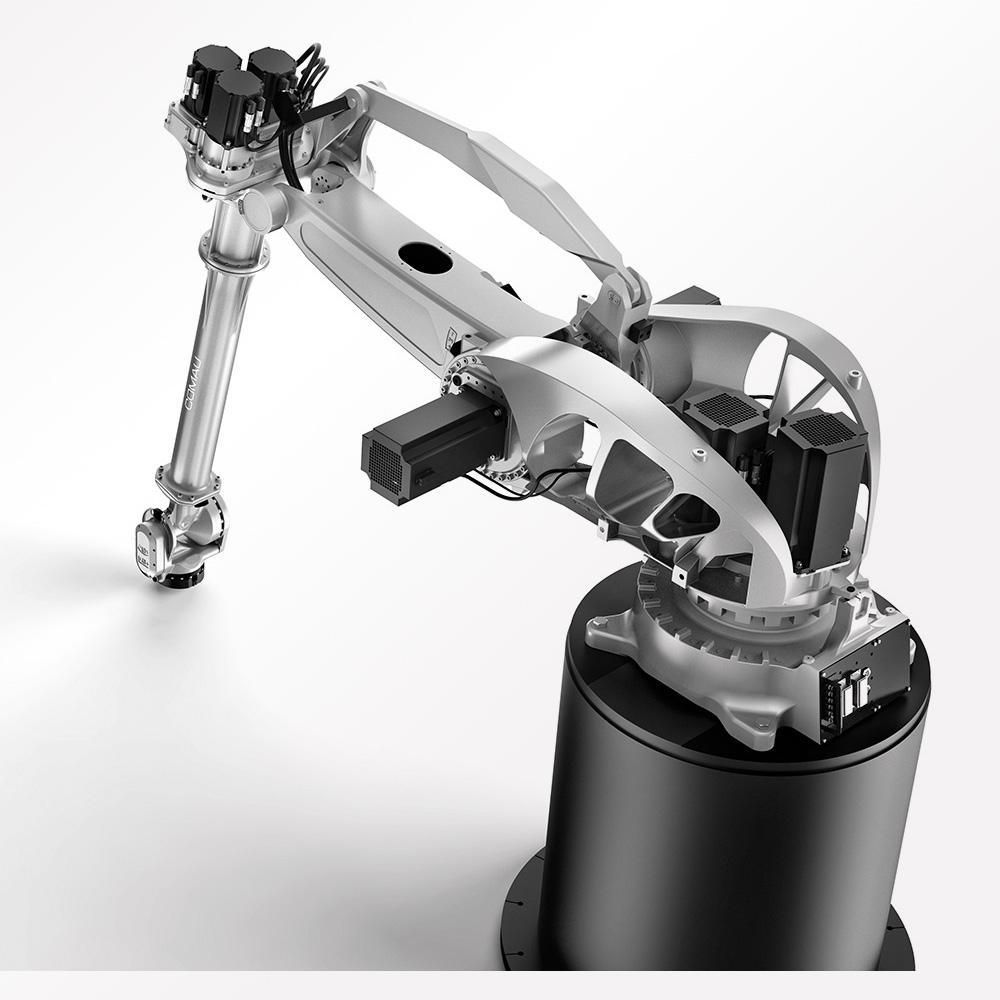

Robot Famliy - NJ 130-3.7 SH

Press-to-Press Automation

Industry-leading technology and factoryproven experience combine to ensure coordinated action, synchrony and pressto-press cycle perfection.

Technical specifications NJ 130-3.7 SH

Number of axes 6
Maximum Wrist Payload 130 kg
Additional load on forearm 15 kg
Maximum horizontal reach 3741 mm
Torque on axis 4 (Nm) 1225 Nm
Torque on axis 5 (Nm) 1225 Nm
Torque on axis 6 (Nm) 648 Nm
Stroke (Speed) on Axis 1 +/- 180° (120°/s)
Stroke (Speed) on Axis 2 -60°/ +170° (95°/s)
Stroke (Speed) on Axis 3 -292°/-21° (112°/s)
Stroke (Speed) on Axis 4 +/- 2700° (180°/s)
Stroke (Speed) on Axis 5 +/- 125° (175°/s)
Stroke (Speed) on Axis 6 +/- 2700° (250°/s)
Repeatability (mm) 0.2 mm
Tool coupling flange ISO 9409-1-A160
Robot weight (Kg) 1520 kg
Protection class IP44 / IP65 Wrist
Mounting position Shelf
Operating Areas A (mm) 3391 mm
Operating Areas B (mm) 3741 mm
Operating Areas C (mm) 712 mm
Operating Areas D (mm) 2386 mm
Operating Areas E (mm) 850 mm

Suitable for

Handling / Packaging, Vision System, Press to press

NJ 130-3.7 SH auxiliary systems

Positioners: MP | TR | PDTV | PTDO
External Axes: External Axes
Slides: TMF
