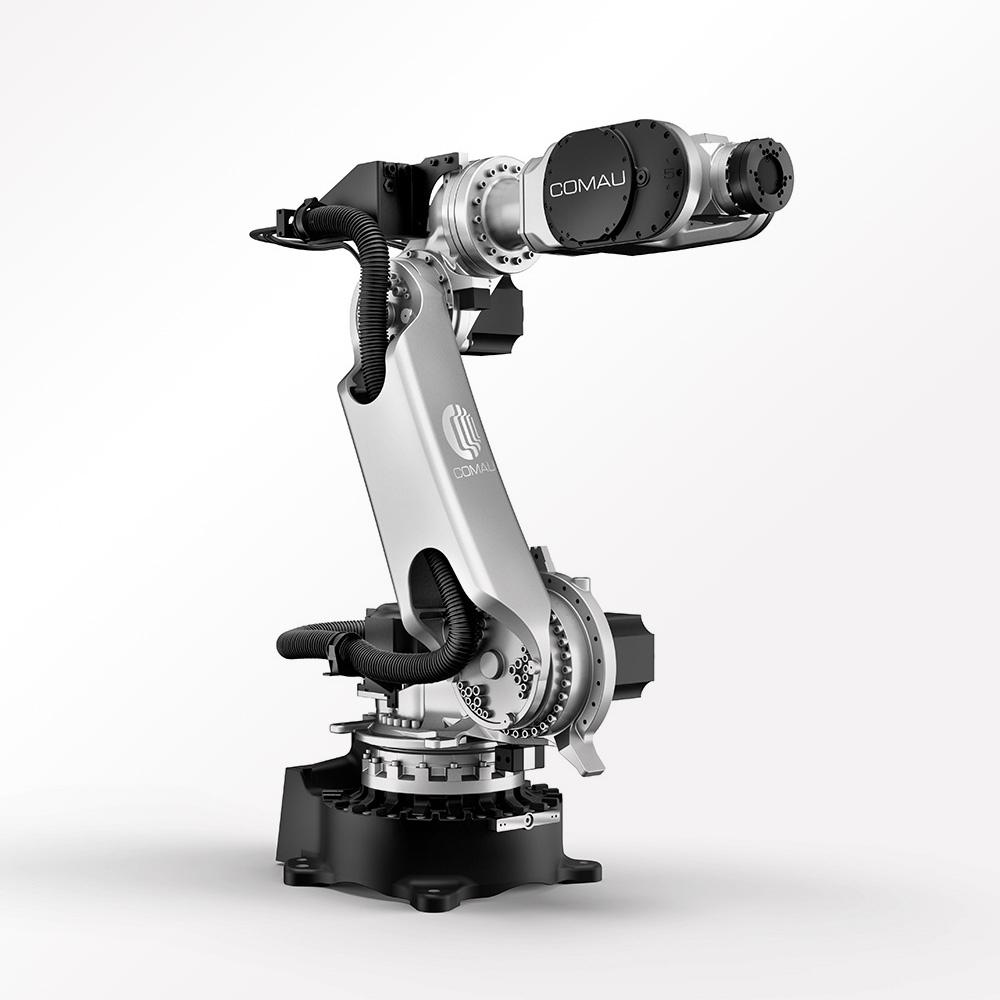

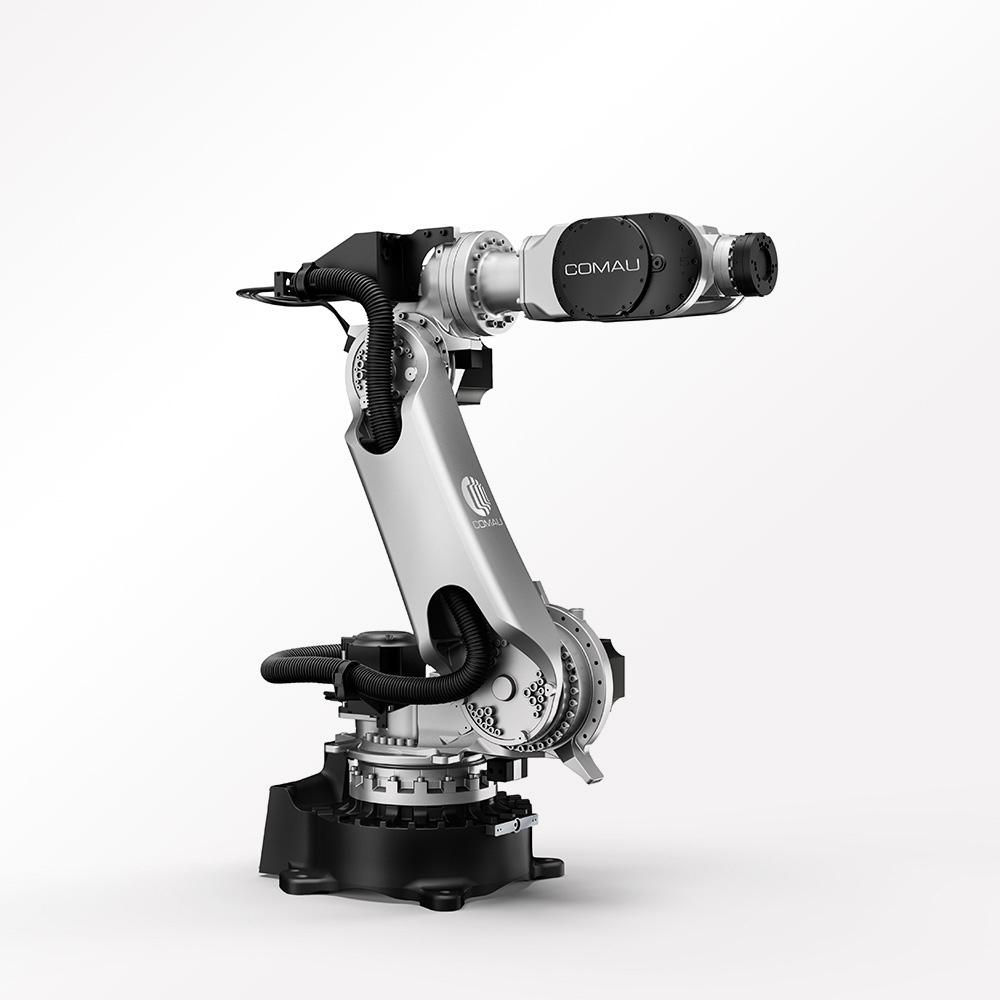

Robot Family - NJ 130-2.0
When Performance Matters
We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more?
Technical specifications NJ 130-2.0
| Number of axes | 6 |
| Maximum Wrist Payload | 130 kg |
| Additional load on forearm | 50 kg |
| Maximum horizontal reach | 2050 mm |
| Torque on axis 4 (Nm) | 638 Nm |
| Torque on axis 5 (Nm) | 638 Nm |
| Torque on axis 6 (Nm) | 314 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (155°/s) |
| Stroke (Speed) on Axis 2 | -60°/ +125° (105°/s) |
| Stroke (Speed) on Axis 3 | 0° / -165° (150°/s) |
| Stroke (Speed) on Axis 4 | +/- 200° (200°/s) |
| Stroke (Speed) on Axis 5 | +/- 120° (190°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (230°/s) |
| Repeatability (mm) | 0.07 mm |
| Tool coupling flange | ISO 9409-1-A125 |
| Robot weight (Kg) | 750 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping |
| Operating Areas A (mm) | 2200 mm |
| Operating Areas B (mm) | 2050 mm |
| Operating Areas C (mm) | 1690 mm |
| Operating Areas D (mm) | 720 mm |
| Operating Areas E (mm) | 733 mm |
Suitable for
Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System
NJ 130-2.0 auxiliary systems
NJ 130-2.0 works with
Downloads
Payload: High 60-300 KG
Reach: 2000-3000 mm
Application: Assembly, Dispensing, Cosmetic sealing, Handling / Packaging, Laser welding Cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
