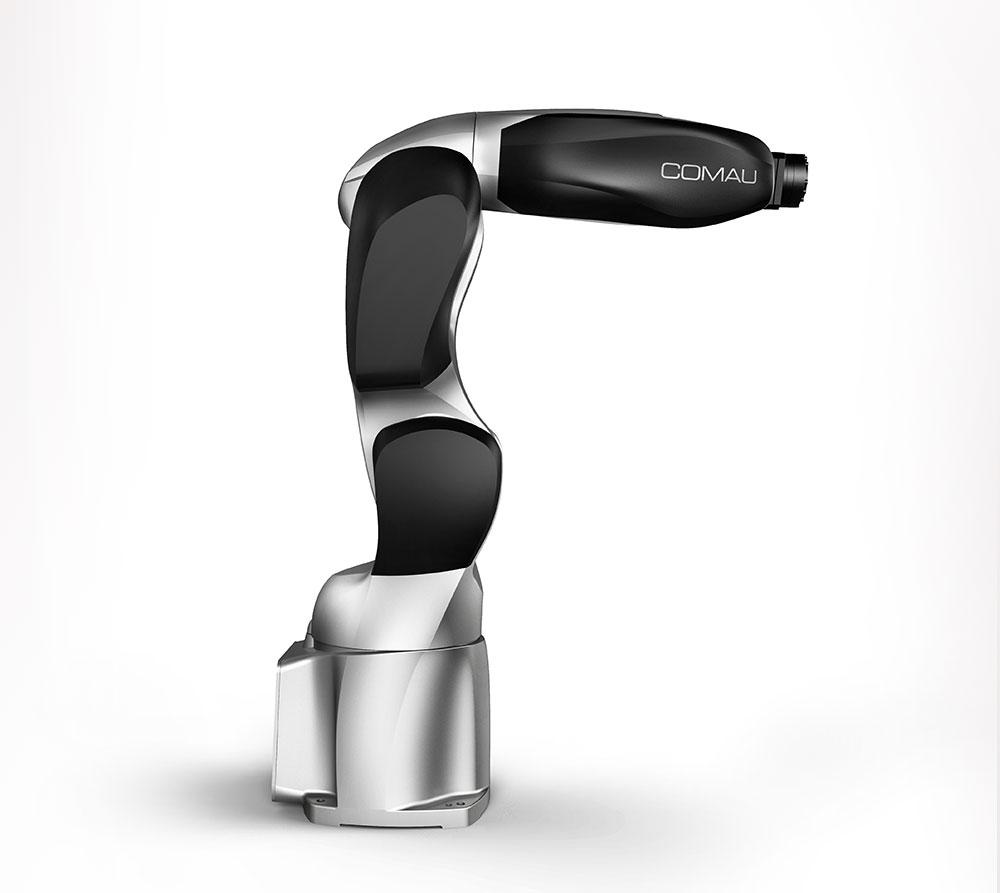

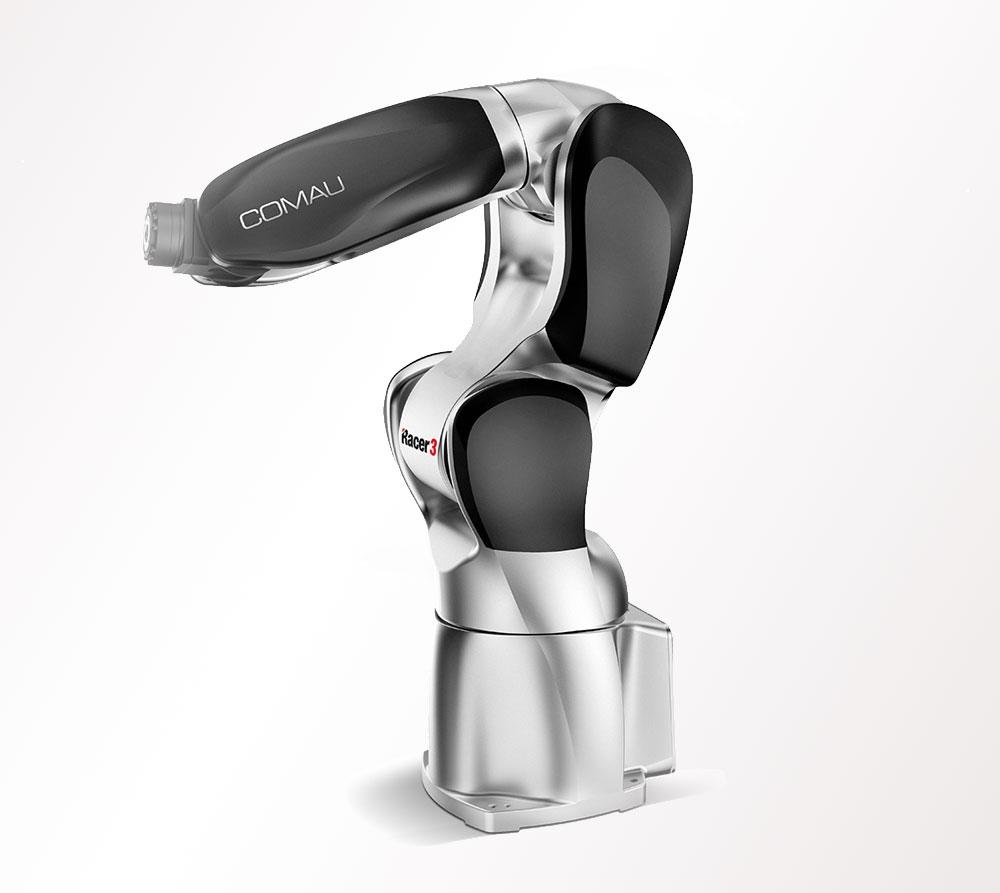

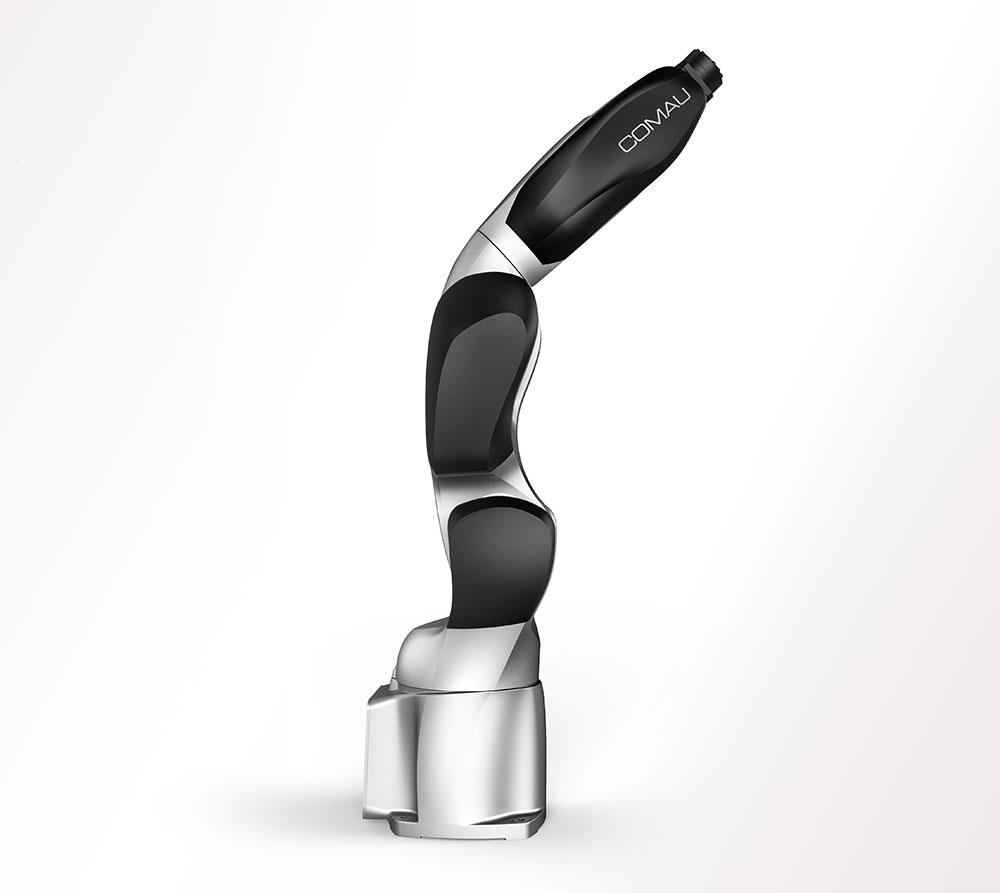

Robot Family - Racer 3-0.63
A New Paradigm in General Industry Robotics
A world-class robot that doesn’t skimp on style. With their unmatched pace and movement fluidity, Racer robots deliver optimal efficiency and technological excellence wrapped up in a sharp new design.
Technical specifications Racer 3-0.63
| Number of axes | 6 |
| Maximum Wrist Payload | 3 kg |
| Additional load on forearm | 2 kg |
| Maximum Horizontal Reach (Radius) | 630 mm |
| Torque on axis 4 (Nm) | 7.36 Nm |
| Torque on axis 5 (Nm) | 7.36 Nm |
| Torque on axis 6 (Nm) | 4.41 Nm |
| Stroke (Speed) on Axis 1 | +/- 170° (430°/s) |
| Stroke (Speed) on Axis 2 | -95°/ +135° (450°/s) |
| Stroke (Speed) on Axis 3 | -155° / +90° (500°/s) |
| Stroke (Speed) on Axis 4 | +/- 200° (600°/s) |
| Stroke (Speed) on Axis 5 | +/- 125° (600°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (900°/s) |
| Repeatability (mm) | 0.02 mm |
| Tool coupling flange | ISO 9409-1- A40 |
| Robot weight (Kg) | 30 kg |
| Protection class | IP54 |
| Mounting position | Floor / Ceiling / Wall |
| Operating Areas A (mm) | 1081 mm |
| Operating Areas B (mm) | 630 mm |
| Operating Areas C (mm) | 37 mm |
| Operating Areas D (mm) | 530 mm |
| Operating Areas E (mm) | 136 mm |
Suitable for
Assembly, Cosmetic sealing, Handling / Packaging, Machine tending, Measuring / Testing, Polishing and Deburring
Racer 3-0.63 works with
Downloads
Payload: Small 0-16 KG
Reach: up to 1000 mm
Application: Assembly, Cosmetic sealing, Handling / Packaging, Machine tending, Measuring / Testing, Polishing and Deburring, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
