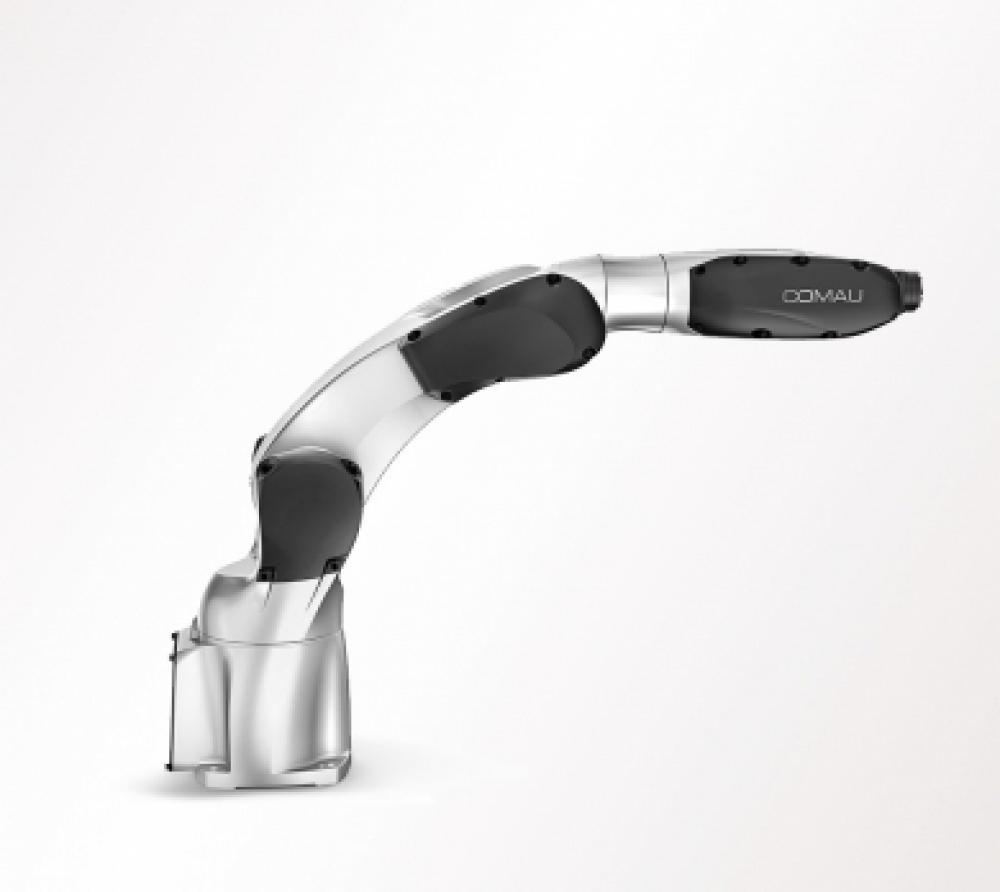

Robot Famliy - Racer 5-0.80

A New Paradigm in General Industry Robotics

A world-class robot that doesn’t skimp on style. With their unmatched pace and movement fluidity, Racer robots deliver optimal efficiency and technological excellence wrapped up in a sharp new design.

Technical specifications Racer 5-0.80

Number of axes 6
Maximum Wrist Payload 5 kg
Maximum Horizontal Reach (Radius) 809 mm
Torque on axis 4 (Nm) 8.83 Nm
Torque on axis 5 (Nm) 8.83 Nm
Torque on axis 6 (Nm) 4.91 Nm
Stroke (Speed) on Axis 1 +/- 170° (360°/s)
Stroke (Speed) on Axis 2 -95°/ +135° (300°/s)
Stroke (Speed) on Axis 3 -155° / +90° (300°/s)
Stroke (Speed) on Axis 4 +/- 210° (500°/s)
Stroke (Speed) on Axis 5 +/- 125° (500°/s)
Stroke (Speed) on Axis 6 +/- 2700° (800°/s)
Repeatability (mm) 0.03 mm
Tool coupling flange ISO 9409-1- A25
Robot weight (Kg) 32 kg
Protection class IP54
Mounting position Floor / Ceiling / Wall (Allowable with payload limitations)
Operating Areas A (mm) 1124 mm
Operating Areas B (mm) 809 mm
Operating Areas C (mm) 8 mm
Operating Areas D (mm) 708 mm
Operating Areas E (mm) 286 mm

Suitable for

Assembly, Dispensing, Handling / Packaging, Machine tending

Racer 5-0.80 works with

Controllers R1C
Teach Pendant TP5

Racer 5-0-80 auxiliary systems

External Axes External Axes
Slides TMF
