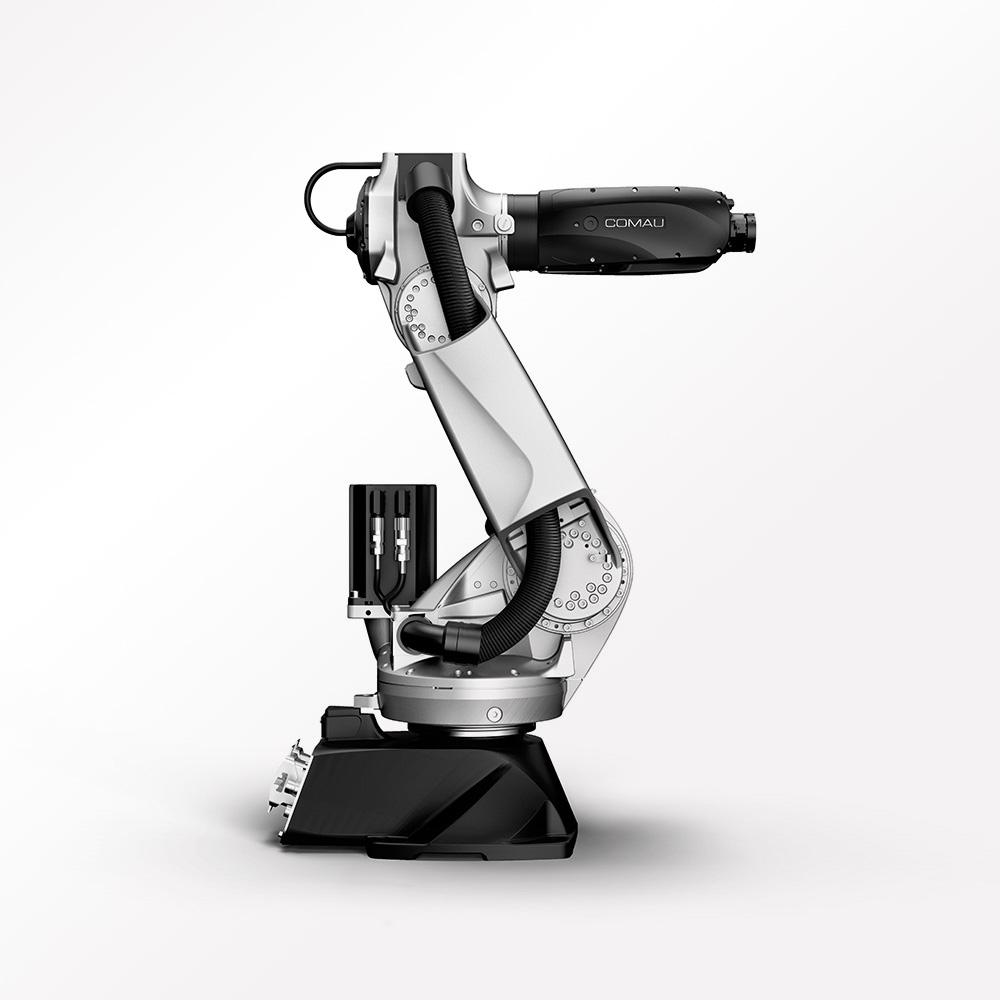

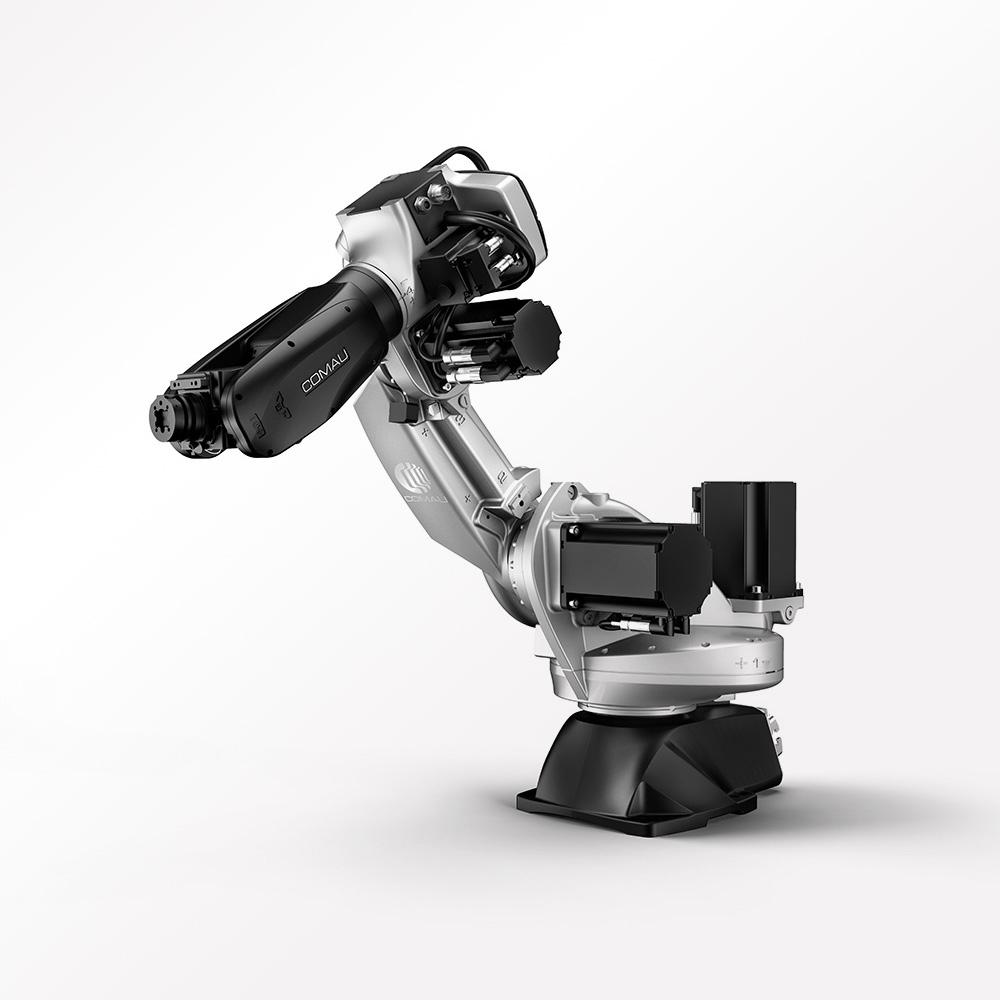

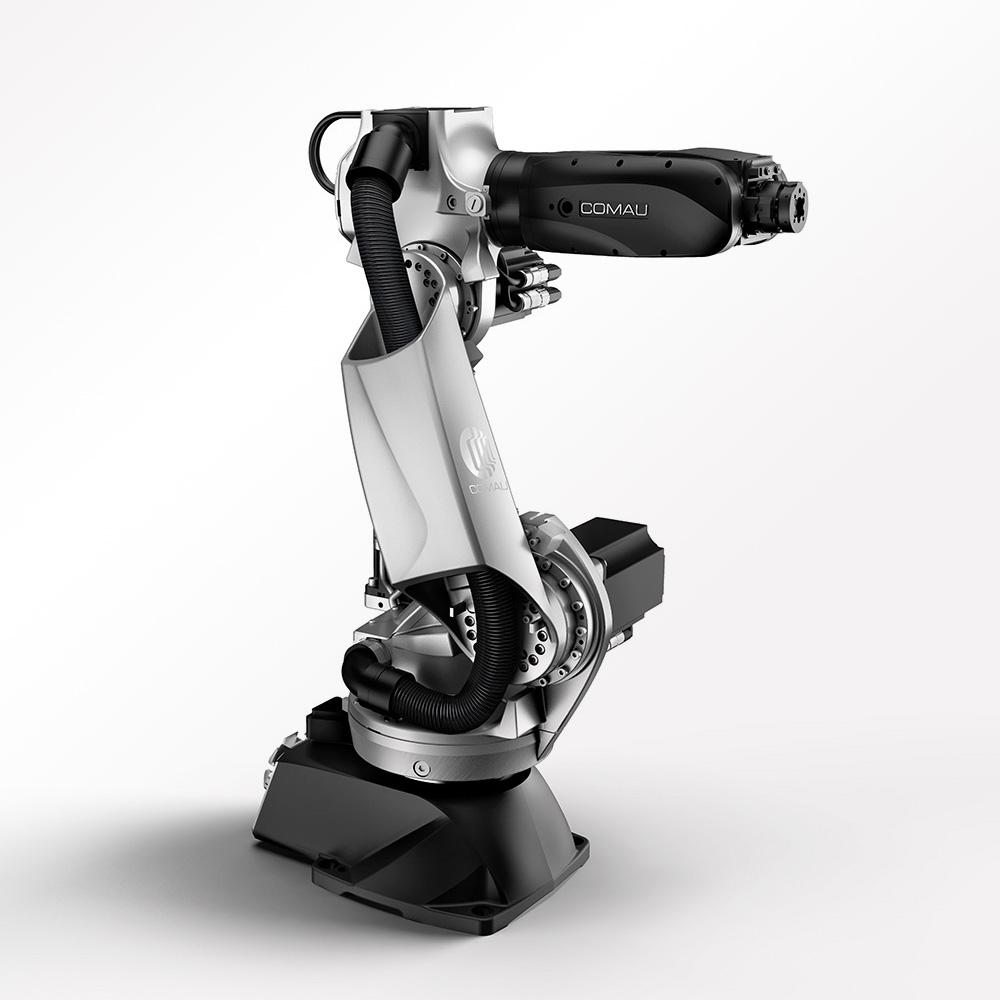

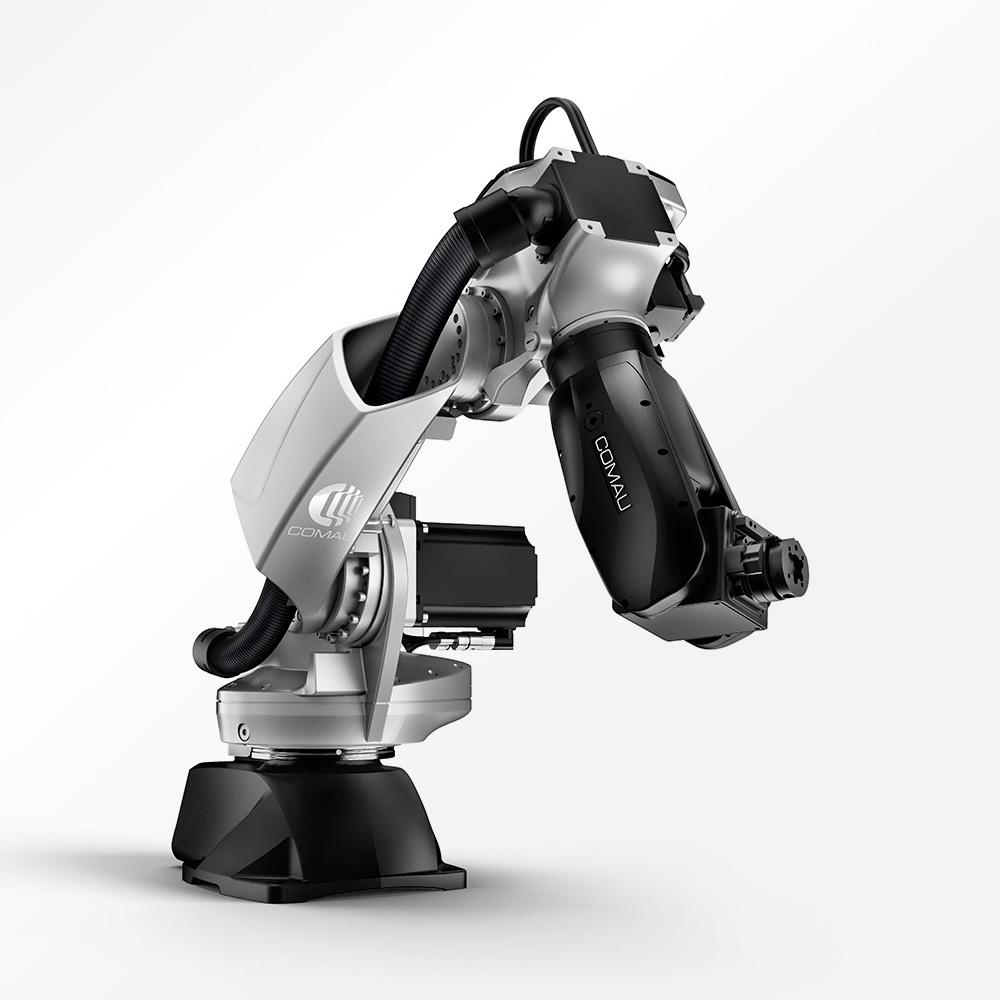

Robot Famliy - Racer 7-1.0

A New Paradigm in General Industry Robotics

A world-class robot that doesn’t skimp on style. With their unmatched pace and movement fluidity, Racer robots deliver optimal efficiency and technological excellence wrapped up in a sharp new design.

Technical specifications Racer 7-1.0

Number of axes 6
Maximum Wrist Payload 7 kg
Maximum horizontal reach 999 mm
Torque on axis 4 (Nm) 13 Nm
Torque on axis 5 (Nm) 13 Nm
Torque on axis 6 (Nm) 7.5 Nm
Stroke (Speed) on Axis 1 +/- 165° (250°/s)
Stroke (Speed) on Axis 2 -65°/ +150° (250°/s)
Stroke (Speed) on Axis 3 -165° / +37° (300°/s)
Stroke (Speed) on Axis 4 +/- 210° (550°/s)
Stroke (Speed) on Axis 5 +/- 137° (550°/s)
Stroke (Speed) on Axis 6 +/- 2700° (600°/s)
Repeatability (mm) 0.05 mm
Tool coupling flange ISO 9409-1- A40
Robot weight (Kg) 173 kg
Protection class IP65
Mounting position Floor / Ceiling / Sloping / Wall
Operating Areas A (mm) 1279 mm
Operating Areas B (mm) 904 mm
Operating Areas C (mm) 904 mm
Operating Areas D (mm) 554 mm
Operating Areas E (mm) 385 mm

Suitable for

Assembly, Cosmetic sealing, Handling / Packaging, Machine tending, Measuring / Testing, Polishing and Deburring, Vision System

Racer 7-1.0 works with

Controllers: CG5 | C5 Compact
Teach Pendant: TP5

Racer 7-1.0 auxiliary systems

Positioners: MP | TR | PDTV | PTDO
External Axes: External Axes
Slides: TMF

Downloads

Related products

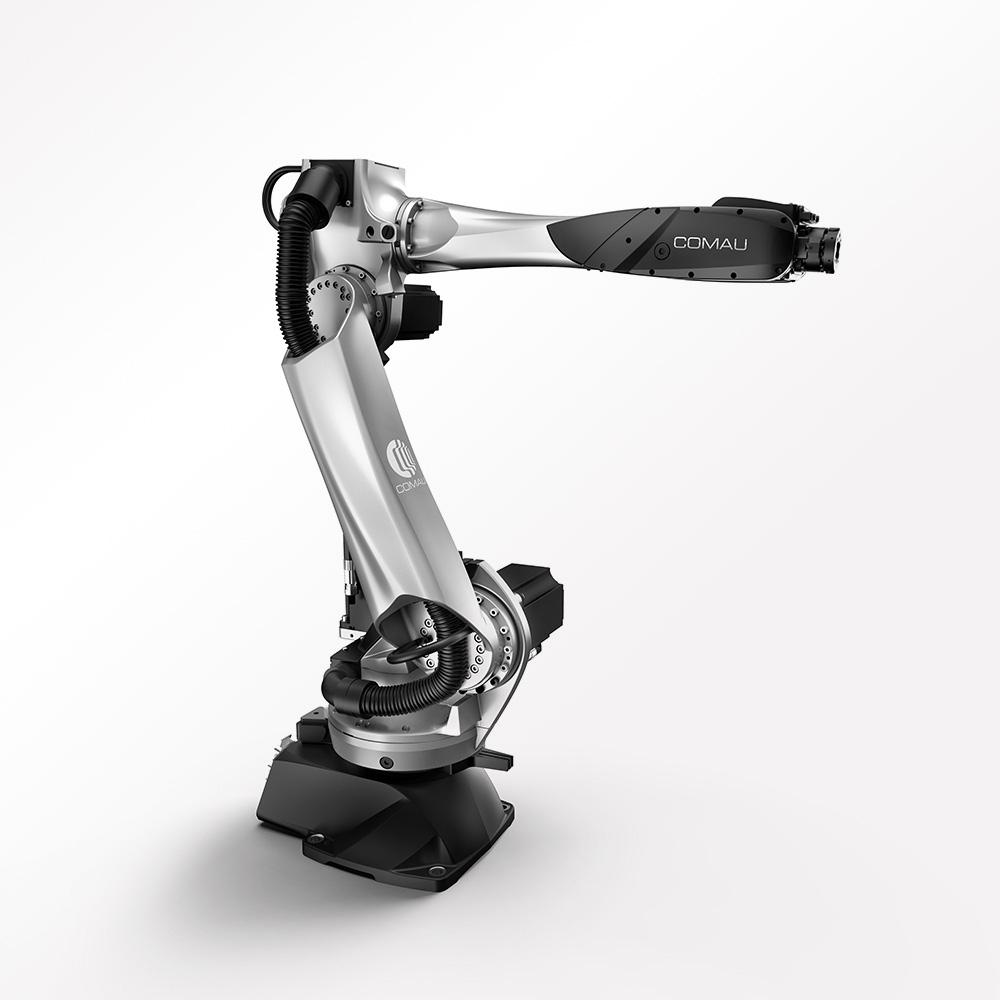

Racer 7-1.4

Payload up to 7 kg
Max H reach of 1436 mm
Repeatibility: 0.05 mm

Detail

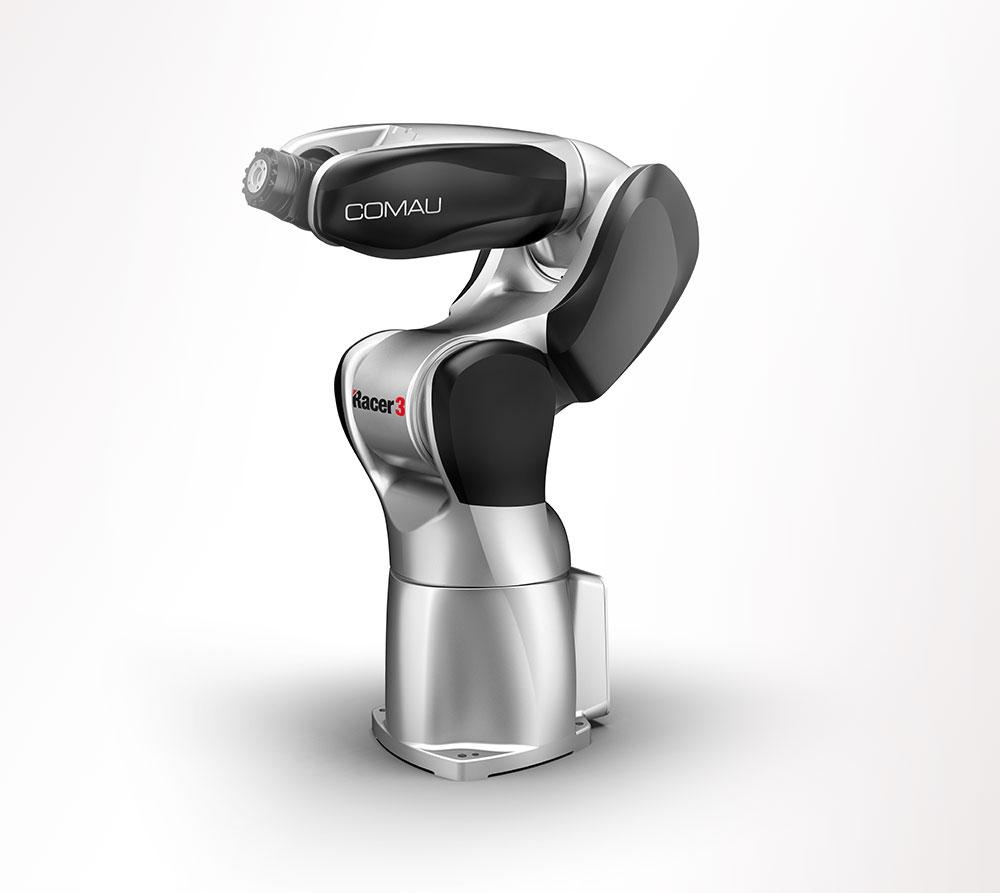

Racer 3-0.63

Payload up to 3 kg
Max H reach of 630 mm
Repeatibility: 0.02 mm

Detail

Racer 5-0.80 Cobot

Payload up to 50 kg
Max H reach of 809 mm
Repeatibility: 0.03 mm

Detail

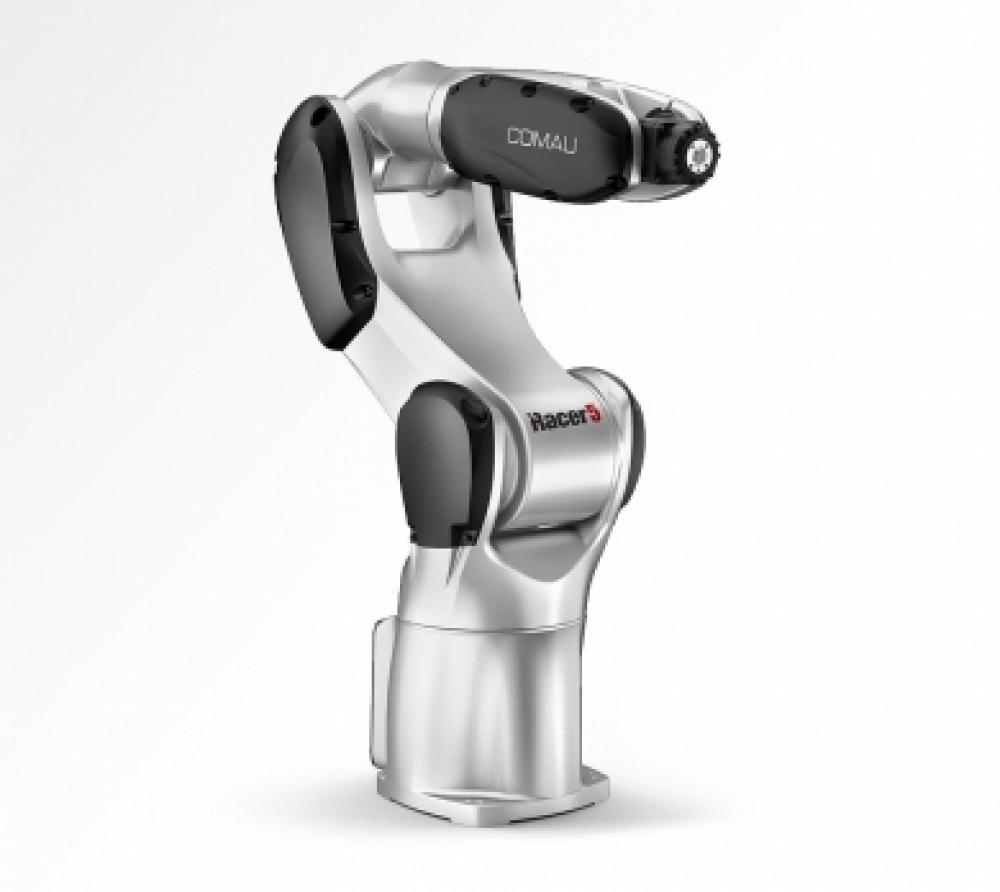

Racer 5-0.80
