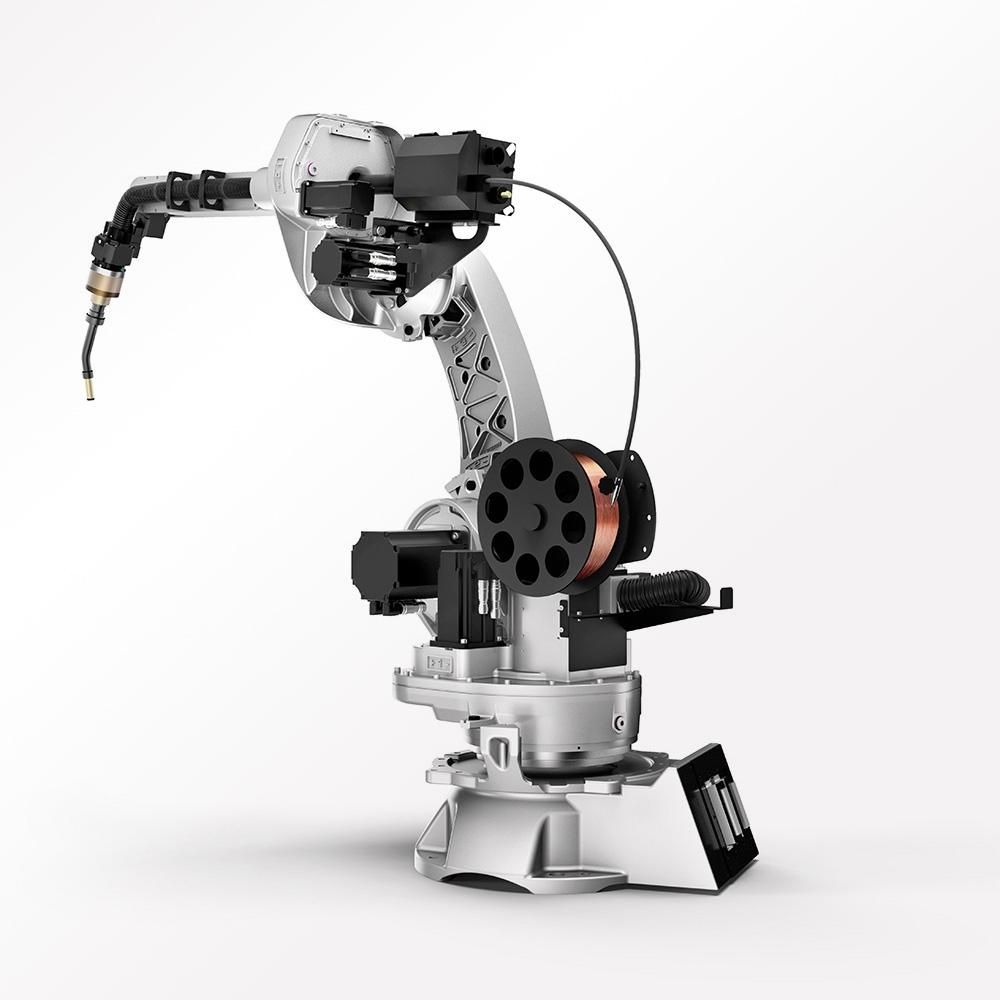

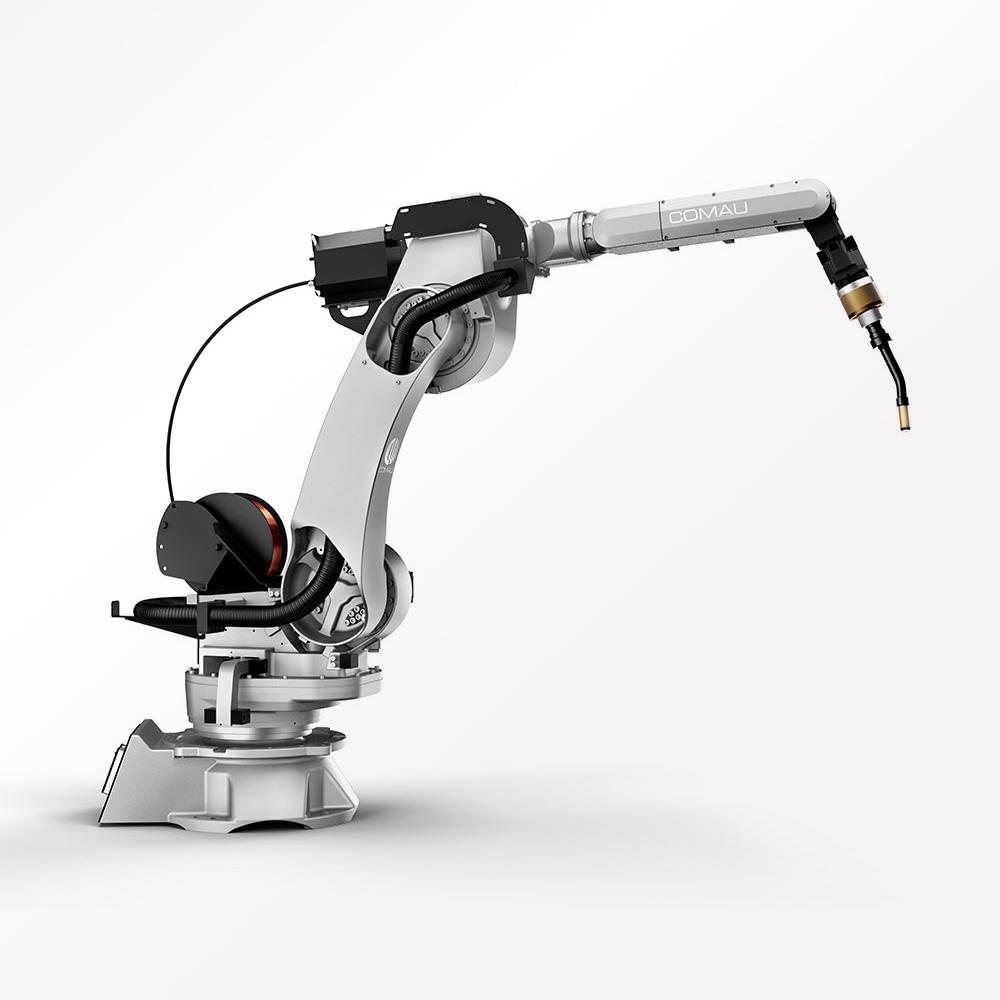

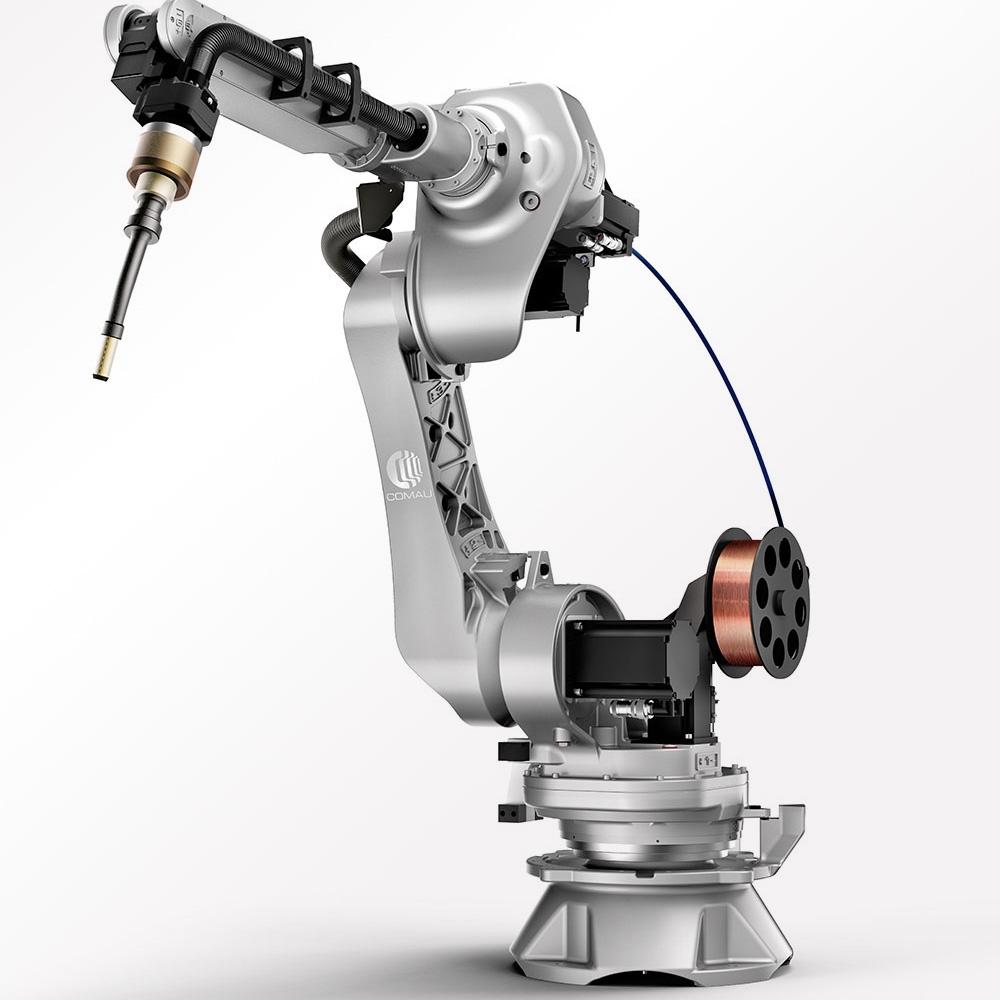

Robot Family - Arc4 5-1.95
Innovation and Performance at Your Service
Specifically designed for today’s arc welding applications, this Hollow Wrist robot can optimize your welding processes and improve your productivity.
Technical specifications Arc4 5-1.95
| Number of axes | 6 |
| Maximum Wrist Payload | 5 kg |
| Additional load on forearm | 10 kg |
| Maximum horizontal reach | 1951 mm |
| Torque on axis 4 (Nm) | 14 Nm |
| Torque on axis 5 (Nm) | 14 Nm |
| Torque on axis 6 (Nm) | 4.9 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (170°/s) |
| Stroke (Speed) on Axis 2 | -60°/ +155 (175°/s) |
| Stroke (Speed) on Axis 3 | -170°/+110° (185°/s) |
| Stroke (Speed) on Axis 4 | +/- 185° (360°/s) |
| Stroke (Speed) on Axis 5 | +/- 123° (375°/s) |
| Stroke (Speed) on Axis 6 | +/- 270° (550°/s) |
| Repeatability (mm) | 0.05 mm |
| Tool coupling flange | ISO 9409-1-63-4-M6 |
| Robot weight (Kg) | 375 kg |
| Protection class | IP65 |
| Mounting position | Floor / Ceiling / Sloped (45° max) |
| Operating Areas A (mm) | 2251 mm |
| Operating Areas B (mm) | 1951 mm |
| Operating Areas C (mm) | 49 mm |
| Operating Areas D (mm) | 1257 mm |
| Operating Areas E (mm) | 986 mm |
Arc4 5-1.95 works with
Downloads
Payload: Small 0-16 KG
Reach: 1000-2000 mm
Application: Arc welding, Vision System
Industry: Machine Automation, Metal and Arc Welding, Automotive, Business Development
