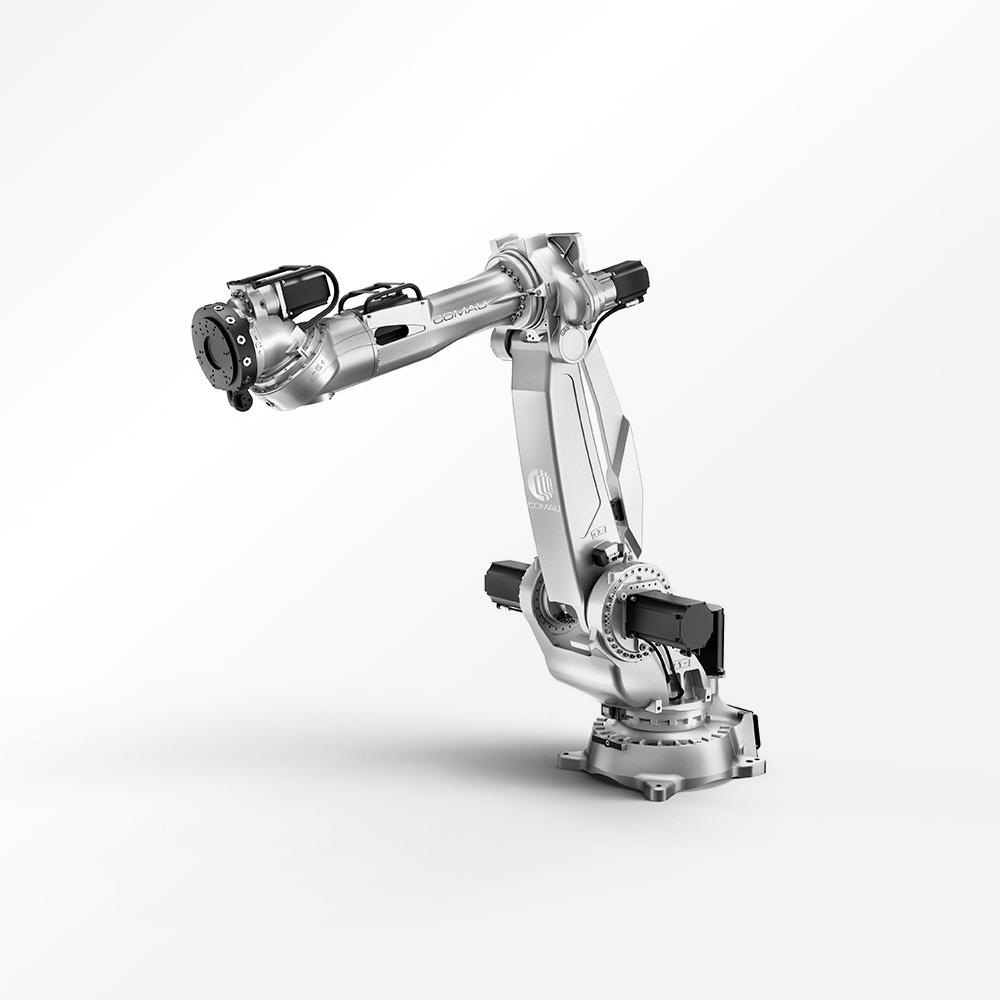

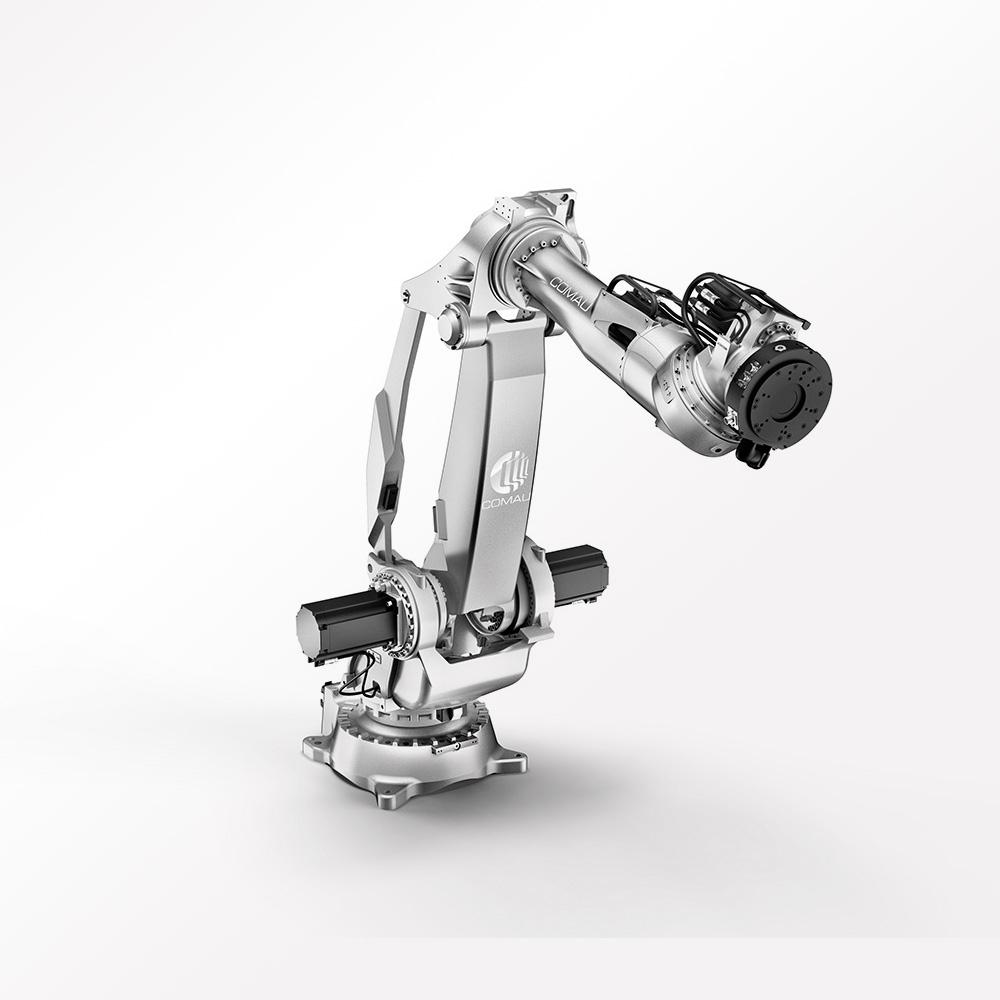

Robot Family - NJ 220-2.7
When Performance Matters
We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more?
Technical specifications NJ 220-2.7
| Number of axes | 6 |
| Maximum Wrist Payload | 220 kg |
| Additional load on forearm | 50 kg |
| Maximum horizontal reach | 2701 mm |
| Torque on axis 4 (Nm) | 1230 Nm |
| Torque on axis 5 (Nm) | 1230 Nm |
| Torque on axis 6 (Nm) | 712 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (100°/s) |
| Stroke (Speed) on Axis 2 | -95°/ +75° (90°/s) |
| Stroke (Speed) on Axis 3 | -10° / -256° (110°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (130°/s) |
| Stroke (Speed) on Axis 5 | +/- 125° (130°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (195°/s) |
| Repeatability (mm) | 0.08 mm |
| Tool coupling flange | ISO 9409-1-A160 |
| Robot weight (Kg) | 1220 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling |
| Operating Areas A (mm) | 3131 mm |
| Operating Areas B (mm) | 2701 mm |
| Operating Areas C (mm) | 2286 mm |
| Operating Areas D (mm) | 786 mm |
| Operating Areas E (mm) | 425 mm |
Suitable for
Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System, Press to press
NJ 220-2.7 works with
NJ 220-2.7 auxiliary systems
Downloads
Payload: High 60-300 KG
Reach: 2000-3000 mm
Application: Assembly, Dispensing, Cosmetic sealing, Handling / Packaging, Laser welding Cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Roller Hemming, Press to press, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
