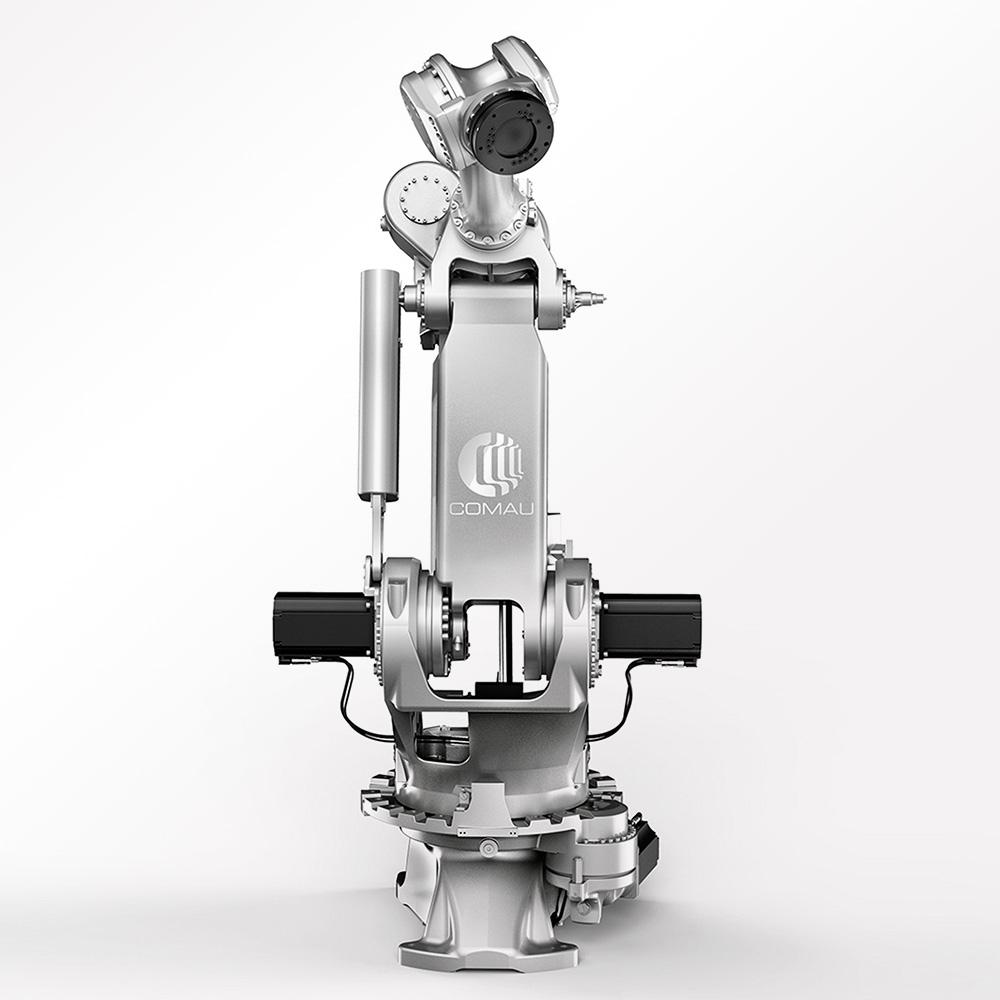

Robot Family - NJ 370-2.7
When Performance Matters
We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more?
Technical specifications NJ 370-2.7
| Number of axes | 6 |
| Maximum Wrist Payload | 370 kg |
| Additional load on forearm | 50 kg |
| Maximum horizontal reach | 2703 mm |
| Torque on axis 4 (Nm) | 2109 Nm |
| Torque on axis 5 (Nm) | 2109 Nm |
| Torque on axis 6 (Nm) | 1177 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (85°/s) |
| Stroke (Speed) on Axis 2 | +75°/ -60° (85°/s) |
| Stroke (Speed) on Axis 3 | -10°/- 231° (85°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (90°/s) |
| Stroke (Speed) on Axis 5 | +/- 125° (90°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (120°/s) |
| Repeatability (mm) | 0.15 mm |
| Tool coupling flange | ISO 9409-1-200-6-M12 |
| Robot weight (Kg) | 2100 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor |
| Operating Areas A (mm) | 3680 mm |
| Operating Areas B (mm) | 2997 mm |
| Operating Areas C (mm) | 3195 mm |
| Operating Areas D (mm) | 433 mm |
| Operating Areas E (mm) | -118 mm |
Suitable for
Assembly, Foundry, Handling / Packaging, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System
NJ 370-2.7 auxiliary systems
NJ 370-2.7 works with
Downloads
Payload: Heavy duty +300 KG
Reach: 2000-3000 mm
Application: Assembly, Foundry,  Handling / Packaging, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
