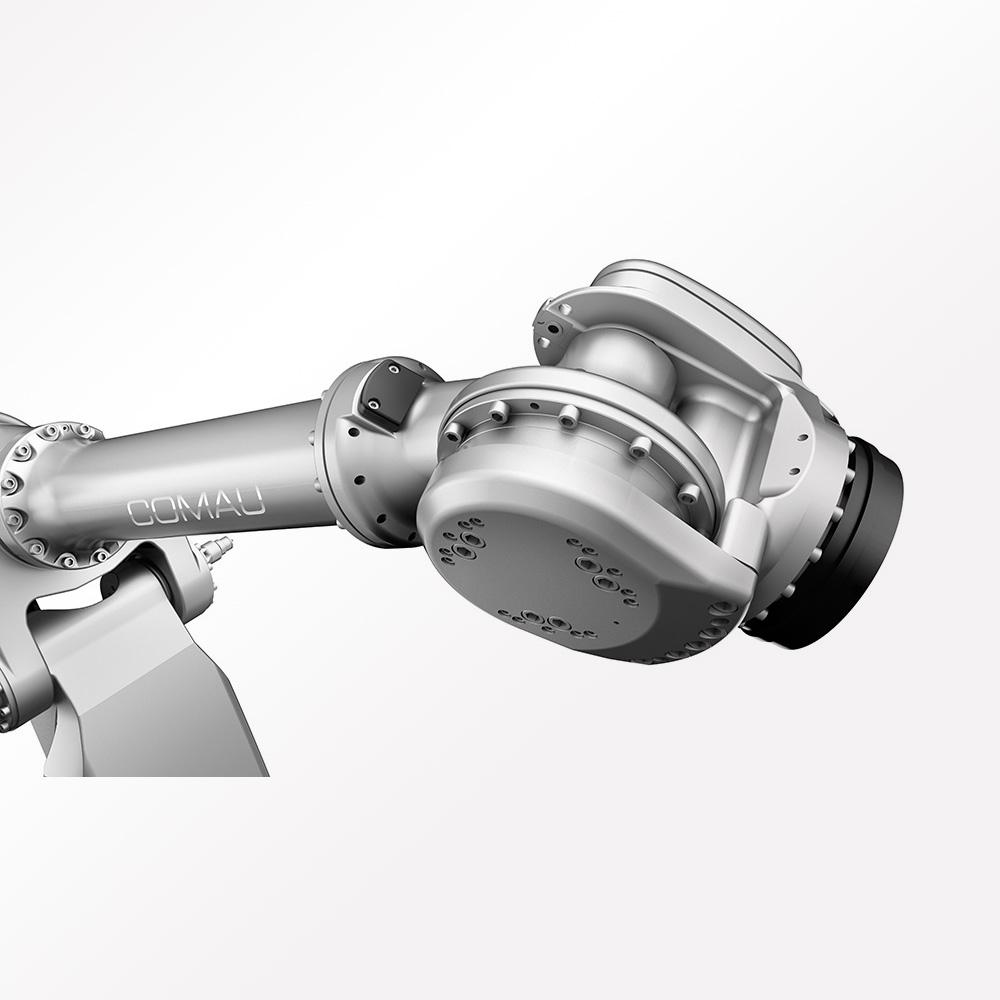

Robot Family - NJ 370-3.0

When Performance Matters

We deliver the power to drive your automation while ensuring energy savings, costs reduction and higher productivity. Need we say more?

Technical specifications NJ 370-3.0

Number of axes 6
Maximum Wrist Payload 370 kg
Additional load on forearm 50 kg
Maximum horizontal reach 2997 mm
Torque on axis 4 (Nm) 2109 Nm
Torque on axis 5 (Nm) 2109 Nm
Torque on axis 6 (Nm) 1569 Nm
Stroke (Speed) on Axis 1 +/- 180° (85°/s)
Stroke (Speed) on Axis 2 +75°/ -60° (85°/s)
Stroke (Speed) on Axis 3 -10°/- 231° (85°/s)
Stroke (Speed) on Axis 4 +/- 2700° (90°/s)
Stroke (Speed) on Axis 5 +/- 125° (90°/s)
Stroke (Speed) on Axis 6 +/- 2700° (120°/s)
Repeatability (mm) 0.15 mm
Tool coupling flange ISO 9409-1-200-6-M12
Robot weight (Kg) 2450 kg
Protection class IP65 / IP67
Mounting position Floor
Operating Areas A (mm) 3680 mm
Operating Areas B (mm) 2997 mm
Operating Areas C (mm) 3195 mm
Operating Areas D (mm) 433 mm
Operating Areas E (mm) -118 mm

Suitable for

Assembly, Foundry, Handling / Packaging, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System

NJ 370-3.0 auxiliary systems

Positioners: MP | TR | PDTV | PTDO
External Axes: External Axes
Slides: TMF
