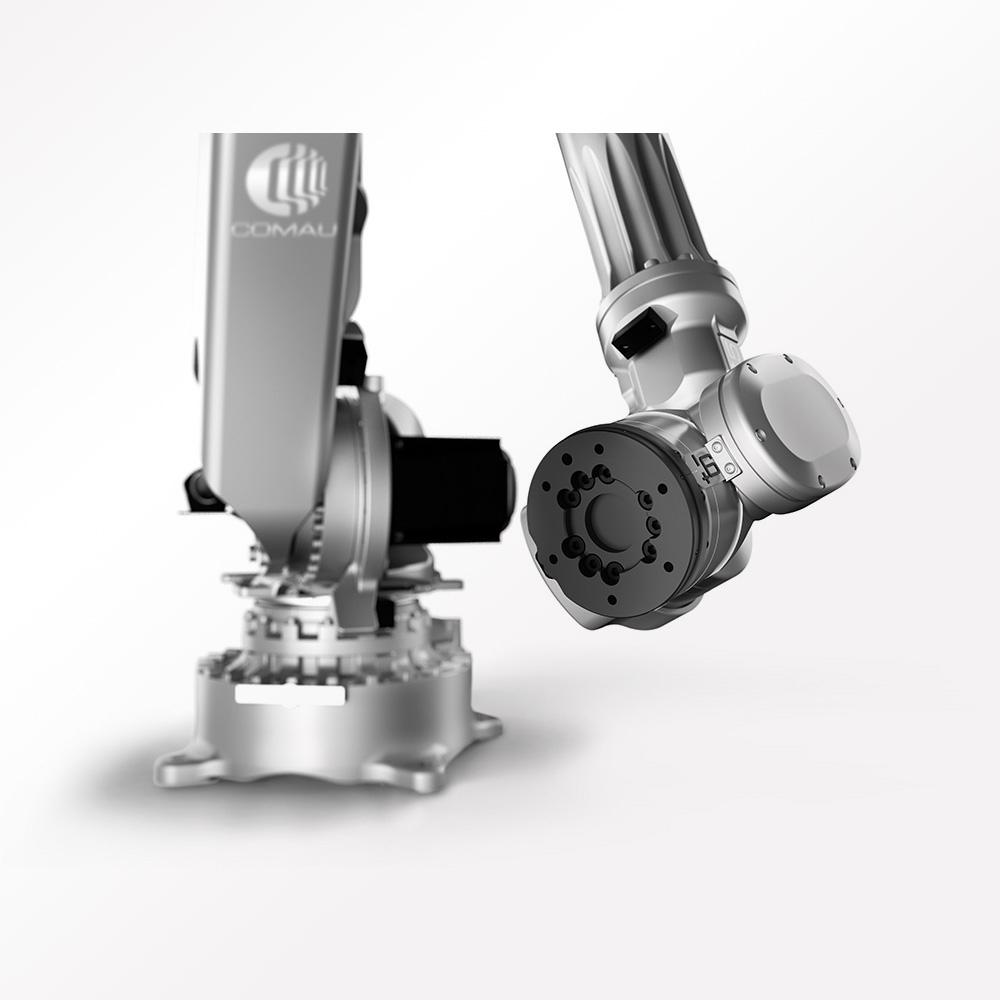

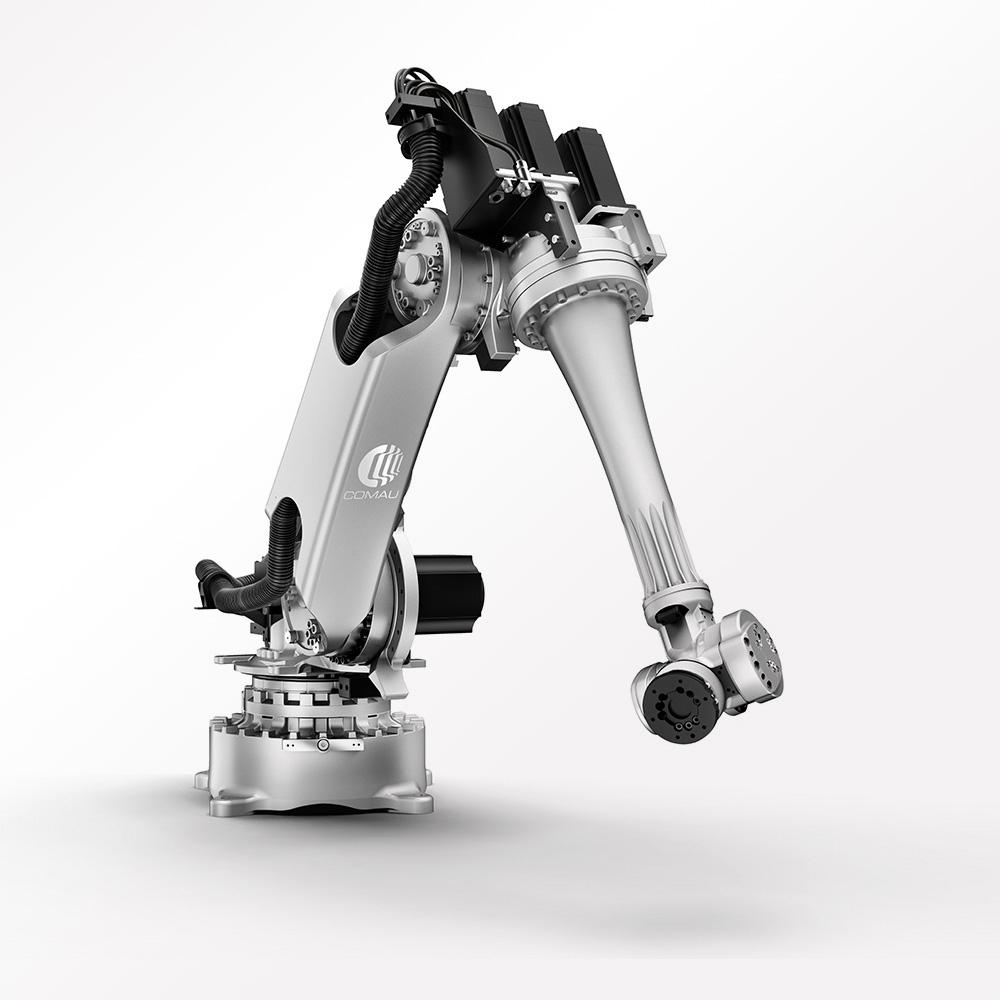

Robot Family - NJ 60 2.2
You’re Good to Go
With reduced weight and exceptional trajectory control, these robots deliver higher speeds and shorter cycle times. In other words, exactly what your applications demand.
Technical specifications NJ 60 2.2
| Number of axes | 6 |
| Maximum Wrist Payload | 60 kg |
| Additional load on forearm | 20 kg |
| Maximum horizontal reach | 2258 mm |
| Torque on axis 4 (Nm) | 221 Nm |
| Torque on axis 5 (Nm) | 221 Nm |
| Torque on axis 6 (Nm) | 118 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (170°/s) |
| Stroke (Speed) on Axis 2 | -60°/ +125° (150°/s) |
| Stroke (Speed) on Axis 3 | 0° / -165° (165°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (265°/s) |
| Stroke (Speed) on Axis 5 | +/- 123° (250°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (340°/s) |
| Repeatability (mm) | 0.06 mm |
| Tool coupling flange | ISO 9409-1-A100 |
| Robot weight (Kg) | 645 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (45° max) |
| Operating Areas A (mm) | 2408 mm |
| Operating Areas B (mm) | 2258 mm |
| Operating Areas C (mm) | 1918 mm |
| Operating Areas D (mm) | 686 mm |
| Operating Areas E (mm) | 941 mm |
Suitable for
Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
NJ 60 2.2 works with
NJ 60 2.2 auxiliary systems
Downloads
Payload: Medium 16-60 KG
Reach: 1000-2000 mm
Application: Arc Welding, Assembly, Dispensing, Cosmetic sealing, Handling / Packaging, Laser welding Cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
