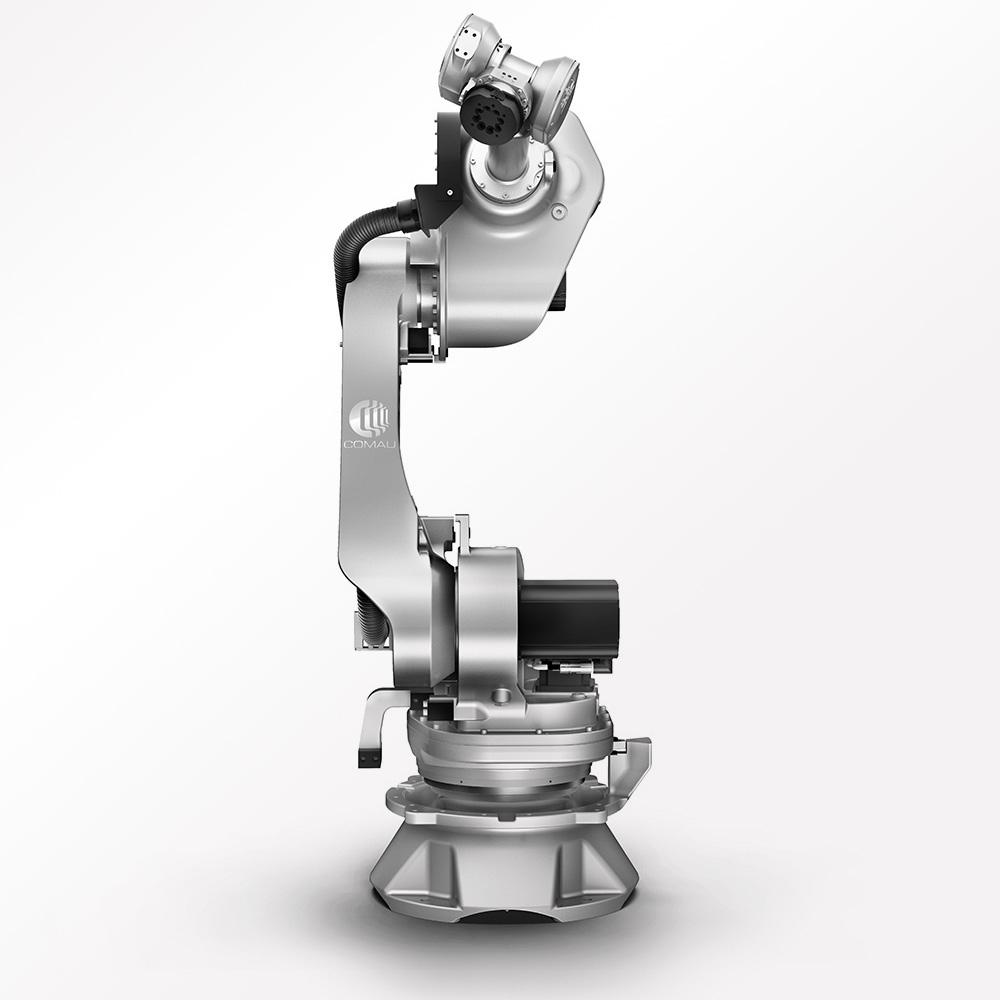

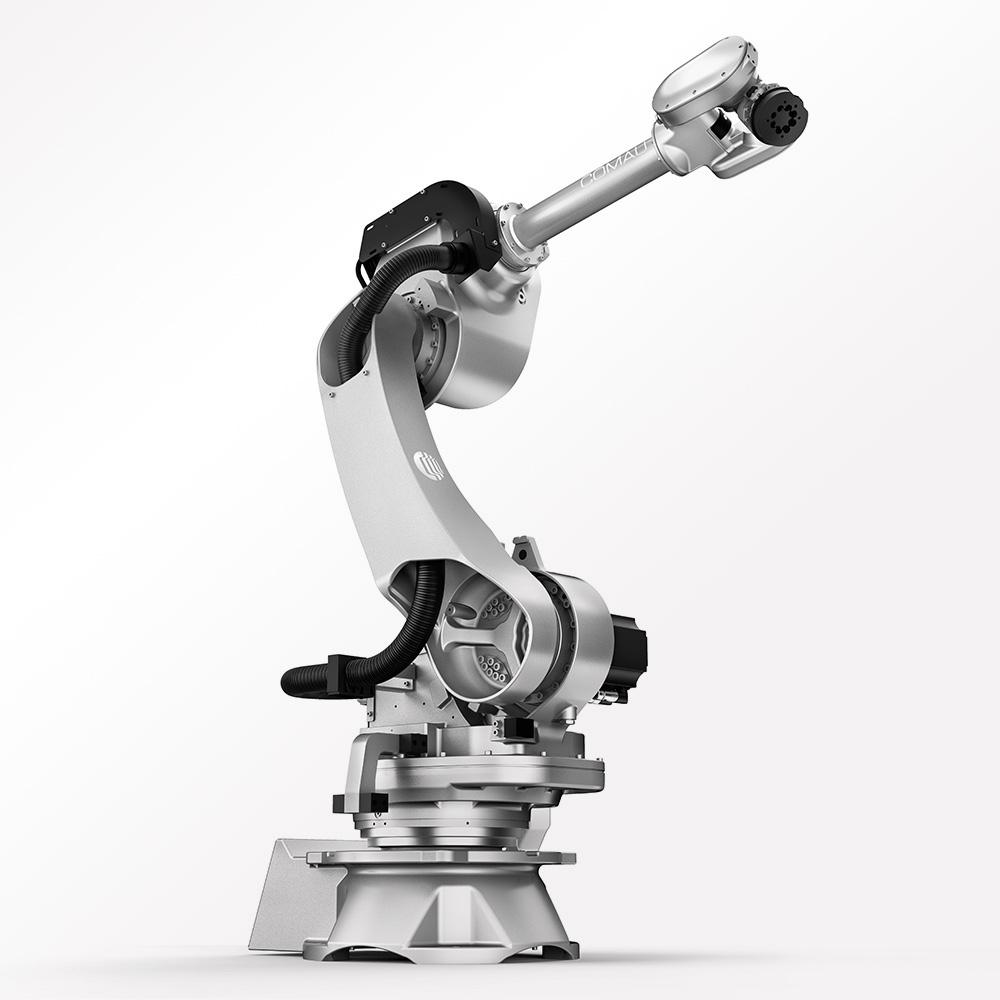

Robot Family - NS 16-1.65
Innovation and Performance at Your Service
Expressly designed for applications where accuracy and rapidity are non-negotiable, NS robots are perfect for a wide range of assembly, handling, machining and arc welding processes.
Technical specifications NS 16-1.65
| Number of axes | 6 |
| Maximum Wrist Payload | 16 kg |
| Additional load on forearm | 10 kg |
| Maximum horizontal reach | 1650 mm |
| Torque on axis 4 (Nm) | 41 Nm |
| Torque on axis 5 (Nm) | 41 Nm |
| Torque on axis 6 (Nm) | 23 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (155°/s) |
| Stroke (Speed) on Axis 2 | -60°/ +155° (155°/s) |
| Stroke (Speed) on Axis 3 | -170° / +110° (170°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (360°/s) |
| Stroke (Speed) on Axis 5 | +/- 120° (350° /s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (550°/s) |
| Repeatability (mm) | 0.05 mm |
| Tool coupling flange | ISO 9409-1-A63 |
| Robot weight (Kg) | 335 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (45° max) |
| Operating Areas A (mm) | 1951 mm |
| Operating Areas B (mm) | 1651 mm |
| Operating Areas C (mm) | 950 mm |
| Operating Areas D (mm) | 957 mm |
| Operating Areas E (mm) | 685 mm |
Suitable for
NS 16-1.65 works with
Controllers: CG5 | C5 Compact
Teach Pendant: TP5
NS 16-1.65 auxiliary systems
Downloads
NS 16-1.65 FOUNDRY-HAND (2D) PDF
NS 16-1.65 FOUNDRY-HAND 2D (AUTOCAD)
NS 16-1.65 FOUNDRY-HAND (3D-ACIS)
NS 16-1.65 FOUNDRY-HAND (3D-PARASOLID)
NS 16-1.65 FOUNDRY-HAND (3D-SOLIDWORKS)
NS 16-1.65 FOUNDRY-HAND (3D-STEP)
NS 16-1.65 FOUNDRY-HAND CAD CR82280915 Tav1
NS 16-1.65 FOUNDRY-HAND CAD CR82280915 Tav2
NS 16-1.65 FOUNDRY (ROBOCAT) tar
Payload: Small 0-16 KG
Reach: 1000-2000 mm
Application: Arc Welding, Assembly, Dispensing, Foundry, Cosmetic sealing, Handling / Packaging, Laser welding Cutting, Machine tending, Measuring / Testing, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
