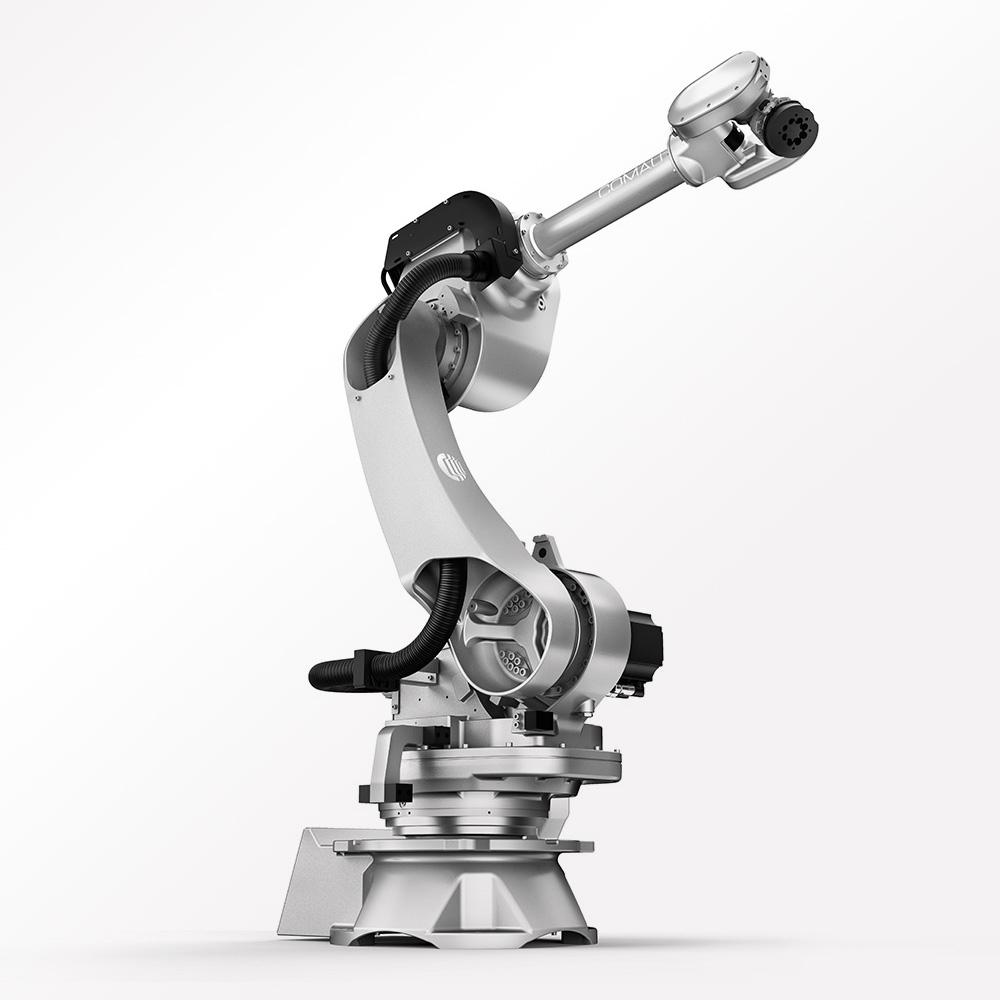

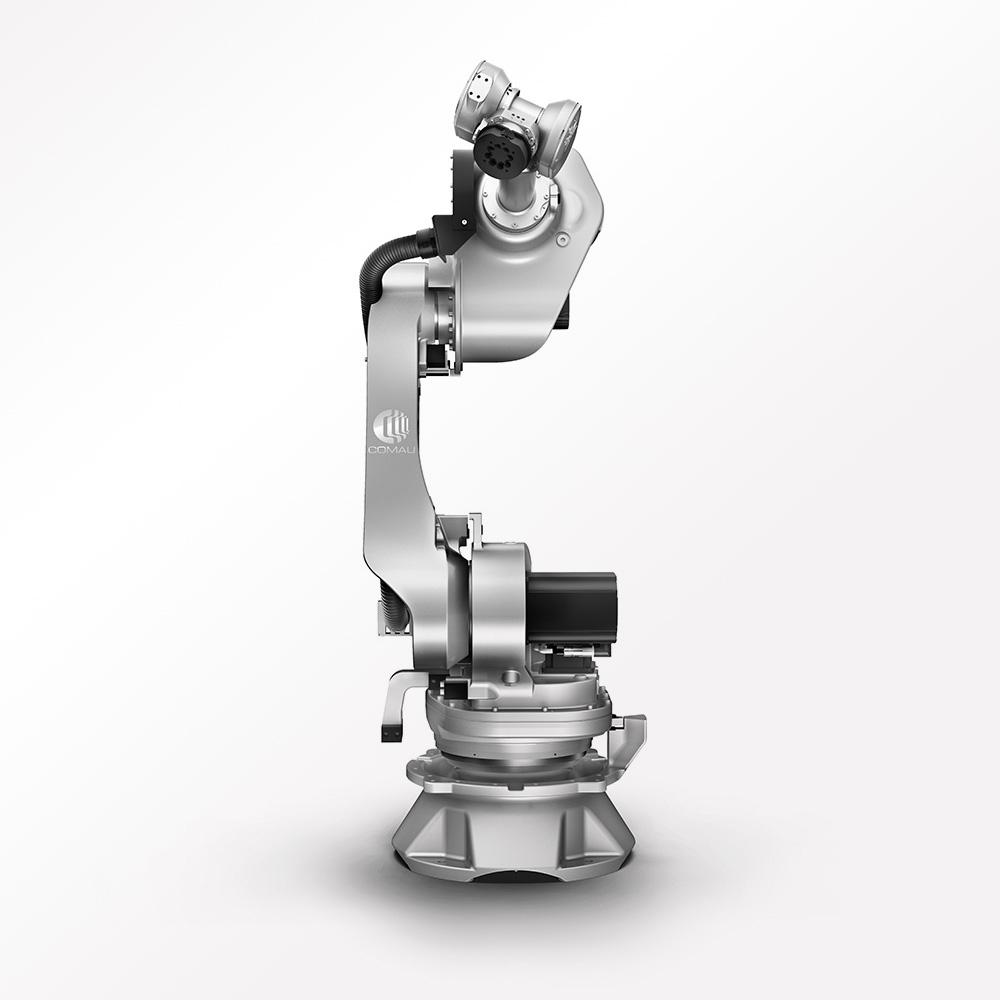

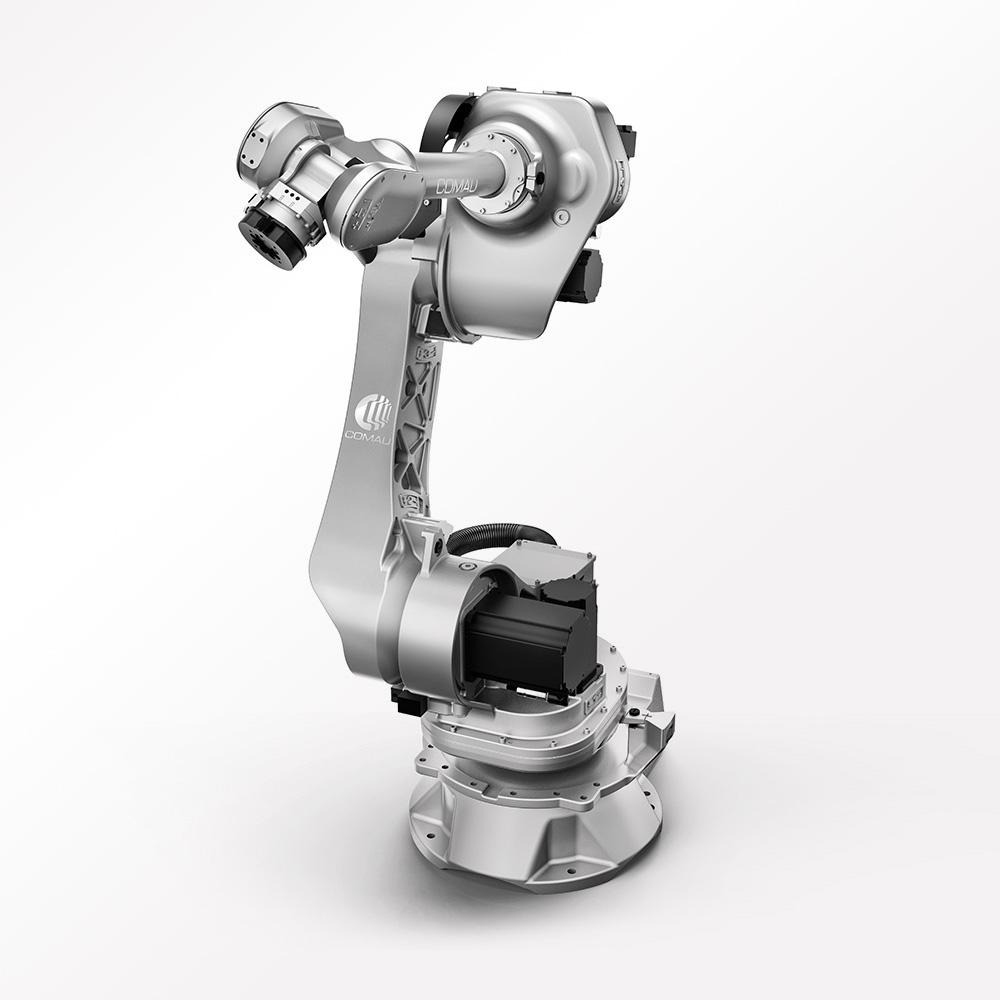

Robot Family - NS 12-1.85
Innovation and Performance at Your Service
Expressly designed for applications where accuracy and rapidity are non-negotiable, NS robots are perfect for a wide range of assembly, handling, machining and arc welding processes.
Technical specifications NS 12-1.85
| Number of axes | 6 |
| Maximum Wrist Payload | 12 kg |
| Additional load on forearm | 10 kg |
| Maximum horizontal reach | 1850 mm |
| Torque on axis 4 (Nm) | 39 Nm |
| Torque on axis 5 (Nm) | 39 Nm |
| Torque on axis 6 (Nm) | 20 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (155°/s) |
| Stroke (Speed) on Axis 2 | -60°/ +155° (155°/s) |
| Stroke (Speed) on Axis 3 | -170° / +110° (170°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (360°/s) |
| Stroke (Speed) on Axis 5 | +/- 120° (350°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (550°/s) |
| Repeatability (mm) | 0.05 mm |
| Tool coupling flange | ISO 9409-1-A63 |
| Robot weight (Kg) | 335 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (45° max) |
| Operating Areas A (mm) | 2150 mm |
| Operating Areas B (mm) | 1850 mm |
| Operating Areas C (mm) | 950 mm |
| Operating Areas D (mm) | 1157 mm |
| Operating Areas E (mm) | 885 mm |
Suitable for
Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Machine tending, Measuring / Testing, Polishing and Deburring, Vision System
NS 12-1.85 works with
Controllers: CG5 | C5 Compact
Teach Pendant: TP5
NS 12-1.85 auxiliary systems
Downloads
Payload: Small 0-16 KG
Reach: 1000-2000 mm
Application: Arc Welding, Assembly, Dispensing, Foundry, Cosmetic sealing, Handling / Packaging, Laser welding Cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
