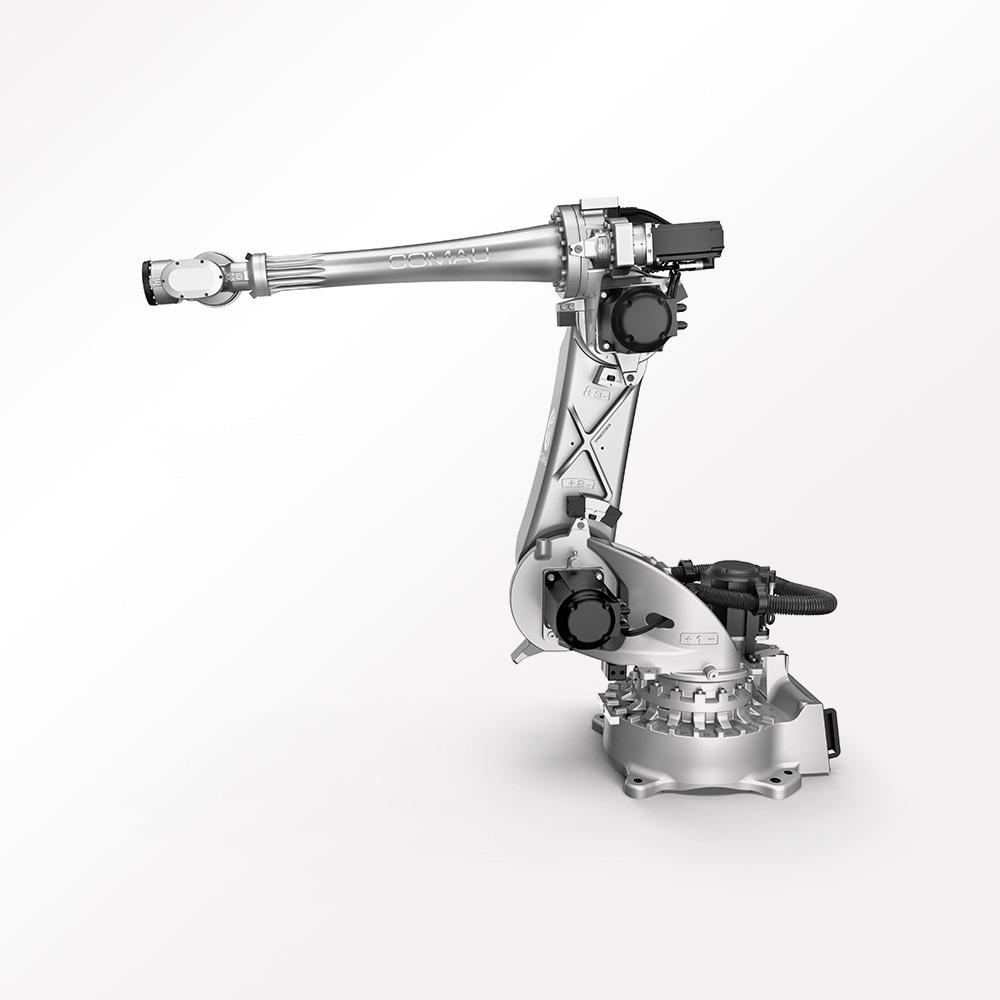

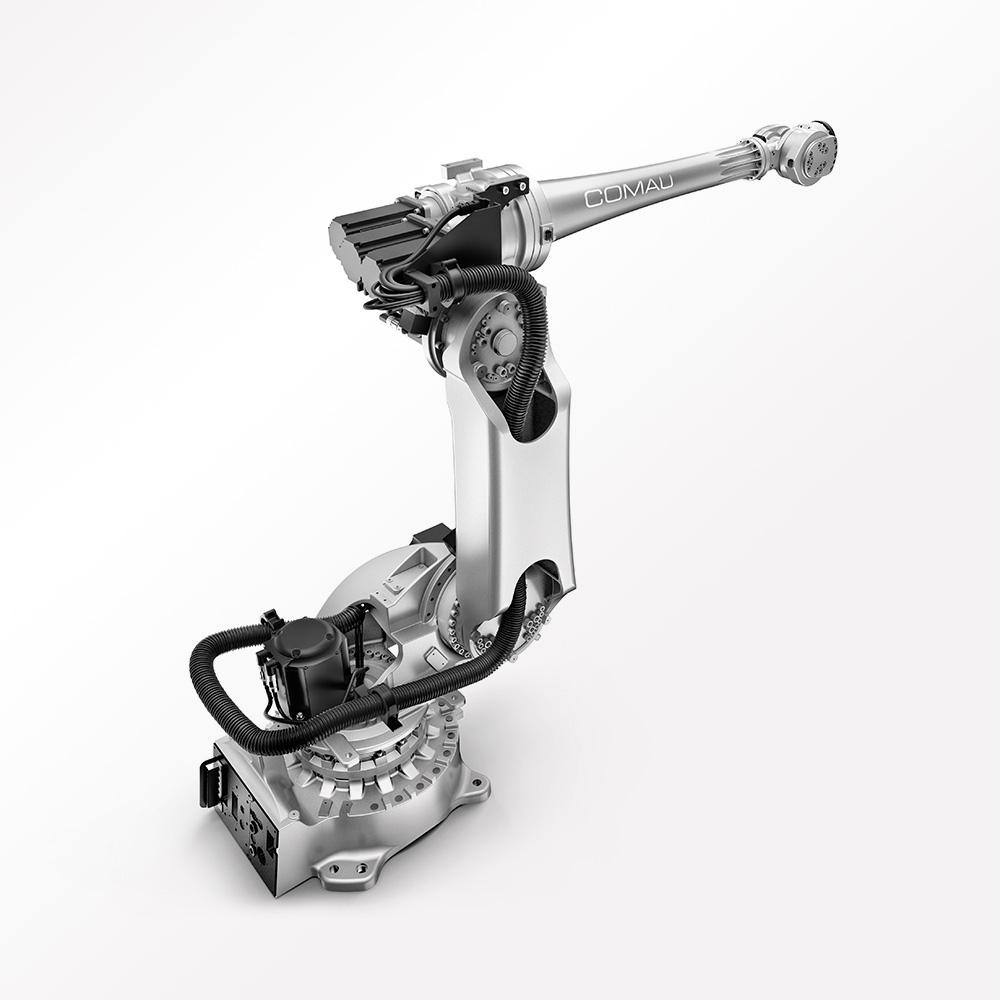

Robot Family - NJ 40-2.5
You’re Good to Go
With reduced weight and exceptional trajectory control, these robots deliver higher speeds and shorter cycle times. In other words, exactly what your applications demand.
Technical specifications NJ 40-2.5
| Number of axes | 6 |
| Maximum Wrist Payload | 40 kg |
| Additional load on forearm | 35 kg |
| Maximum horizontal reach | 2503 mm |
| Torque on axis 4 (Nm) | 167 Nm |
| Torque on axis 5 (Nm) | 167 Nm |
| Torque on axis 6 (Nm) | 98 Nm |
| Stroke (Speed) on Axis 1 | +/- 180° (170°/s) |
| Stroke (Speed) on Axis 2 | -60°/ +125° (150°/s) |
| Stroke (Speed) on Axis 3 | 0° / -165° (165°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (265°/s) |
| Stroke (Speed) on Axis 5 | +/- 123° (250° /s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (340°/s) |
| Repeatability (mm) | 0.06 mm |
| Tool coupling flange | ISO 9409-1-A100 |
| Robot weight (Kg) | 655 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (45° max) |
| Operating Areas A (mm) | 2653 mm |
| Operating Areas B (mm) | 2503 mm |
| Operating Areas C (mm) | 2165 mm |
| Operating Areas D (mm) | 720 mm |
| Operating Areas E (mm) | 1187 mm |
Suitable for
Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
NJ 40-2.5 works with
NJ 40-2.5 auxiliary systems
Payload: Medium 16-60 KG
Reach: 2000-3000 mm
Application: Arc Welding, Assembly, Dispensing, Cosmetic sealing, Handling / Packaging, Laser welding Cutting, Machine tending, Measuring / Testing, Plasma cutting / water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
